03 B 750M
- Inner diameter:
- 750 mm
- Outer diameter:
- 1060 mm
- Width:
- 310 mm
We will provide you with the most suitable solution.

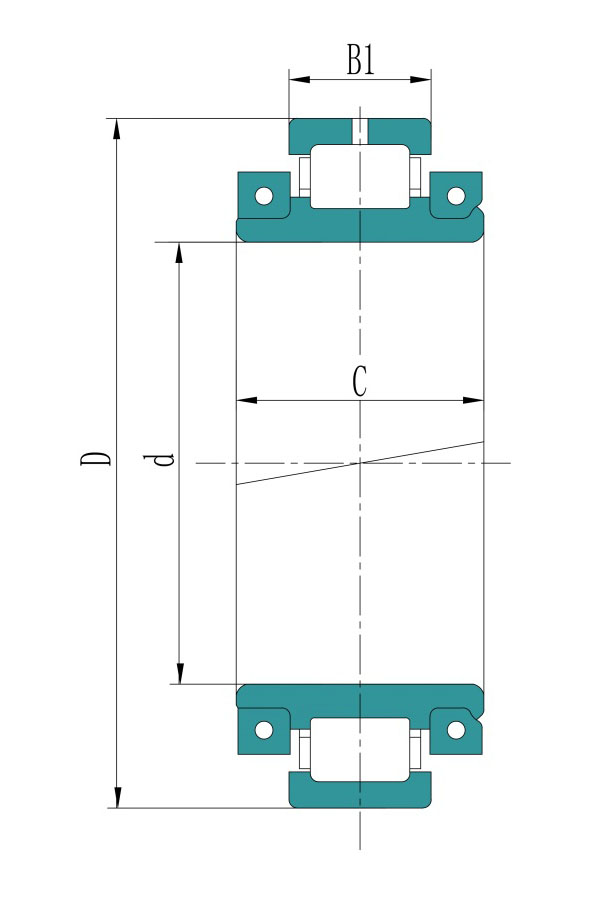

Image may differ from product. See technical specification for details.
Specifications
Seris - 03 B 750M
Brand :
QIBR
Rolling element type :
Roller
Measurement system :
Metric
Inner diameter (d) :
750 mm
Outer diameter (D) :
1060 mm
Width of inner ring (C) :
310 mm
Width (B1) :
185 mm
Basic dynamic load rating,radial :
5173 KN
Basic static load rating,radial :
10544 KN
Load direction :
Radial
Ring material :
Bearing steel GCr15
Rolling element material :
Bearing steel GCr15
Number of rolling element rows :
Single Row
Bearing Type :
Split Cylindrical Roller Bearings
Lubrication :
Oil
Bearing clearances :
CN/C2/C3
Temperature :
-30 ℃ to +110 ℃
Seal type :
Open Type
Description
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
QIBR - 03 B 750M Split Roller Bearings Advantages and Applications
QIBR - 03 B 750M Split Roller Bearings Characteristics
Features & Benefits
Split Roller Bearings are engineered for heavy industrial applications where quick maintenance, high load capacity, and reliability are critical. Their two-piece split design allows for easy installation and replacement without shaft disassembly, significantly reducing downtime in demanding environments.
