Search for the bearing model you need
Material
AISI 304, 316L, 440
Applications
Bearing Manufacturing, Automotive and Medical Devices
Grade
G5, G10
Density
7.93-7.98g/cm3
Hardness
Rockwell C25 (Hard), Rockwell B90

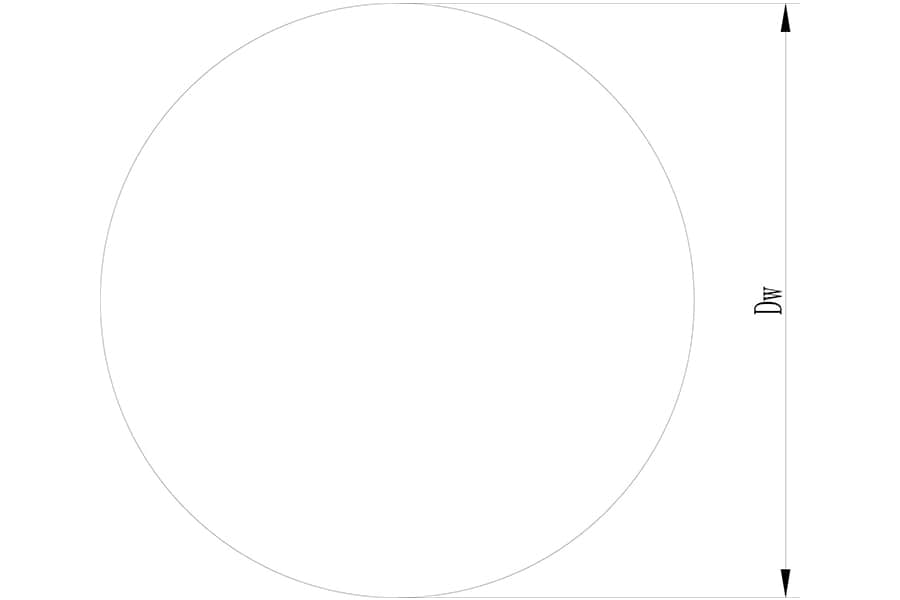

Nominal diameter (Dw)
0.3mm-114.3mm
| NO. | Product | Product Number | Density | Hardness | Mass | Material | Nominal diameter (Dw) |
|---|---|---|---|---|---|---|---|
| 1 |
|
AISI 304 Stainless Steel Ball 0.3mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00011 g | AISI 304 | 0.30000 mm |
| 2 |
|
AISI 304 Stainless Steel Ball 0.4mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00027 g | AISI 304 | 0.40000 mm |
| 3 |
|
AISI 304 Stainless Steel Ball 0.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00052 g | AISI 304 | 0.50000 mm |
| 4 |
|
AISI 304 Stainless Steel Ball 0.6mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00090 g | AISI 304 | 0.60000 mm |
| 5 |
|
AISI 304 Stainless Steel Ball 0.025inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00106 g | AISI 304 | 0.02500 inch |
| 6 |
|
AISI 304 Stainless Steel Ball 0.7mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00142 g | AISI 304 | 0.70000 mm |
| 7 |
|
AISI 304 Stainless Steel Ball 1/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00208 g | AISI 304 | 0.03125 inch |
| 8 |
|
AISI 304 Stainless Steel Ball 0.8mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00213 g | AISI 304 | 0.80000 mm |
| 9 |
|
AISI 304 Stainless Steel Ball 1mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00415 g | AISI 304 | 1.00000 mm |
| 10 |
|
AISI 304 Stainless Steel Ball 3/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00701 g | AISI 304 | 0.04688 inch |
| 11 |
|
AISI 304 Stainless Steel Ball 1.2mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.00717 g | AISI 304 | 1.20000 mm |
| 12 |
|
AISI 304 Stainless Steel Ball 1.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.01401 g | AISI 304 | 1.50000 mm |
| 13 |
|
AISI 304 Stainless Steel Ball 1/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.01661 g | AISI 304 | 0.06250 inch |
| 14 |
|
AISI 304 Stainless Steel Ball 5/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.03244 g | AISI 304 | 0.07813 inch |
| 15 |
|
AISI 304 Stainless Steel Ball 2mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.03322 g | AISI 304 | 2.00000 mm |
| 16 |
|
AISI 304 Stainless Steel Ball 3/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.05606 g | AISI 304 | 0.09375 inch |
| 17 |
|
AISI 304 Stainless Steel Ball 2.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.06488 g | AISI 304 | 2.50000 mm |
| 18 |
|
AISI 304 Stainless Steel Ball 7/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.08904 g | AISI 304 | 0.10938 inch |
| 19 |
|
AISI 304 Stainless Steel Ball 2.8mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.09115 g | AISI 304 | 2.80000 mm |
| 20 |
|
AISI 304 Stainless Steel Ball 3mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.11211 g | AISI 304 | 3.00000 mm |
| 21 |
|
AISI 304 Stainless Steel Ball 1/8inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.13289 g | AISI 304 | 0.12500 inch |
| 22 |
|
AISI 304 Stainless Steel Ball 3.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.17802 g | AISI 304 | 3.50000 mm |
| 23 |
|
AISI 304 Stainless Steel Ball 9/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.18922 g | AISI 304 | 0.14063 inch |
| 24 |
|
AISI 304 Stainless Steel Ball 5/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.25956 g | AISI 304 | 0.15625 inch |
| 25 |
|
AISI 304 Stainless Steel Ball 4mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.26574 g | AISI 304 | 4.00000 mm |
| 26 |
|
AISI 304 Stainless Steel Ball 4.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.37836 g | AISI 304 | 4.50000 mm |
| 27 |
|
AISI 304 Stainless Steel Ball 3/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.44851 g | AISI 304 | 0.18750 inch |
| 28 |
|
AISI 304 Stainless Steel Ball 5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.51902 g | AISI 304 | 5.00000 mm |
| 29 |
|
AISI 304 Stainless Steel Ball 5.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.69081 g | AISI 304 | 5.50000 mm |
| 30 |
|
AISI 304 Stainless Steel Ball 7/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.71222 g | AISI 304 | 0.21875 inch |
| 31 |
|
AISI 304 Stainless Steel Ball 15/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.87606 g | AISI 304 | 0.23438 inch |
| 32 |
|
AISI 304 Stainless Steel Ball 6mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 0.89686 g | AISI 304 | 6.00000 mm |
| 33 |
|
AISI 304 Stainless Steel Ball 1/4inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.06315 g | AISI 304 | 0.25000 inch |
| 34 |
|
AISI 304 Stainless Steel Ball 6.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.14028 g | AISI 304 | 6.50000 mm |
| 35 |
|
AISI 304 Stainless Steel Ball 17/64inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.27520 g | AISI 304 | 0.26563 inch |
| 36 |
|
AISI 304 Stainless Steel Ball 7mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.42418 g | AISI 304 | 7.00000 mm |
| 37 |
|
AISI 304 Stainless Steel Ball 9/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.51374 g | AISI 304 | 0.28125 inch |
| 38 |
|
AISI 304 Stainless Steel Ball 7.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 1.75168 g | AISI 304 | 7.50000 mm |
| 39 |
|
AISI 304 Stainless Steel Ball 5/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 2.07646 g | AISI 304 | 0.31250 inch |
| 40 |
|
AISI 304 Stainless Steel Ball 8mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 2.12589 g | AISI 304 | 8.00000 mm |
| 41 |
|
AISI 304 Stainless Steel Ball 8.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 2.54993 g | AISI 304 | 8.50000 mm |
| 42 |
|
AISI 304 Stainless Steel Ball 11/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 2.76376 g | AISI 304 | 0.34375 inch |
| 43 |
|
AISI 304 Stainless Steel Ball 9mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 3.02691 g | AISI 304 | 9.00000 mm |
| 44 |
|
AISI 304 Stainless Steel Ball 3/8inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 3.58812 g | AISI 304 | 0.37500 inch |
| 45 |
|
AISI 304 Stainless Steel Ball 10mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 4.15214 g | AISI 304 | 10.00000 mm |
| 46 |
|
AISI 304 Stainless Steel Ball 13/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 4.56198 g | AISI 304 | 0.40625 inch |
| 47 |
|
AISI 304 Stainless Steel Ball 11mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 5.52650 g | AISI 304 | 11.00000 mm |
| 48 |
|
AISI 304 Stainless Steel Ball 7/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 5.69780 g | AISI 304 | 0.43750 inch |
| 49 |
|
AISI 304 Stainless Steel Ball 11.5mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 6.31488 g | AISI 304 | 11.50000 mm |
| 50 |
|
AISI 304 Stainless Steel Ball 15/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 7.00804 g | AISI 304 | 0.46875 inch |
| 51 |
|
AISI 304 Stainless Steel Ball 12mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 7.17489 g | AISI 304 | 12.00000 mm |
| 52 |
|
AISI 304 Stainless Steel Ball 1/2inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 8.50517 g | AISI 304 | 0.50000 inch |
| 53 |
|
AISI 304 Stainless Steel Ball 13mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 9.12225 g | AISI 304 | 13.00000 mm |
| 54 |
|
AISI 304 Stainless Steel Ball 17/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 10.20164 g | AISI 304 | 0.53125 inch |
| 55 |
|
AISI 304 Stainless Steel Ball 14mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 11.39347 g | AISI 304 | 14.00000 mm |
| 56 |
|
AISI 304 Stainless Steel Ball 9/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 12.10990 g | AISI 304 | 0.56250 inch |
| 57 |
|
AISI 304 Stainless Steel Ball 15mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 14.01347 g | AISI 304 | 15.00000 mm |
| 58 |
|
AISI 304 Stainless Steel Ball 19/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 14.24242 g | AISI 304 | 0.59375 inch |
| 59 |
|
AISI 304 Stainless Steel Ball 5/8inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 16.61166 g | AISI 304 | 0.62500 inch |
| 60 |
|
AISI 304 Stainless Steel Ball 16mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 17.00716 g | AISI 304 | 16.00000 mm |
| 61 |
|
AISI 304 Stainless Steel Ball 21/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 19.23007 g | AISI 304 | 0.65625 inch |
| 62 |
|
AISI 304 Stainless Steel Ball 17mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 20.39946 g | AISI 304 | 17.00000 mm |
| 63 |
|
AISI 304 Stainless Steel Ball 11/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 22.11012 g | AISI 304 | 0.68750 inch |
| 64 |
|
AISI 304 Stainless Steel Ball 18mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 24.21527 g | AISI 304 | 18.00000 mm |
| 65 |
|
AISI 304 Stainless Steel Ball 23/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 25.26426 g | AISI 304 | 0.71875 inch |
| 66 |
|
AISI 304 Stainless Steel Ball 19mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 28.47952 g | AISI 304 | 19.00000 mm |
| 67 |
|
AISI 304 Stainless Steel Ball 3/4inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 28.70495 g | AISI 304 | 0.75000 inch |
| 68 |
|
AISI 304 Stainless Steel Ball 25/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 32.44465 g | AISI 304 | 0.78125 inch |
| 69 |
|
AISI 304 Stainless Steel Ball 20mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 33.21711 g | AISI 304 | 20.00000 mm |
| 70 |
|
AISI 304 Stainless Steel Ball 13/16inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 36.49581 g | AISI 304 | 0.81250 inch |
| 71 |
|
AISI 304 Stainless Steel Ball 21mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 38.45295 g | AISI 304 | 21.00000 mm |
| 72 |
|
AISI 304 Stainless Steel Ball 27/32inch | 7.93 g/cm3 | Rockwell C25 (Hard) | 40.87091 g | AISI 304 | 0.84375 inch |
| 73 |
|
AISI 304 Stainless Steel Ball 22mm | 7.93 g/cm3 | Rockwell C25 (Hard) | 44.21197 g | AISI 304 | 22.00000 mm |
| 74 |
|
AISI 304 Stainless Stee |
