01 B 775M
- Inner diameter:
- 775 mm
- Outer diameter:
- 945 mm
- Width:
- 165 mm
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - 01 B 775M
Brand :
QIBR
Rolling element type :
Roller
Measurement system :
Metric

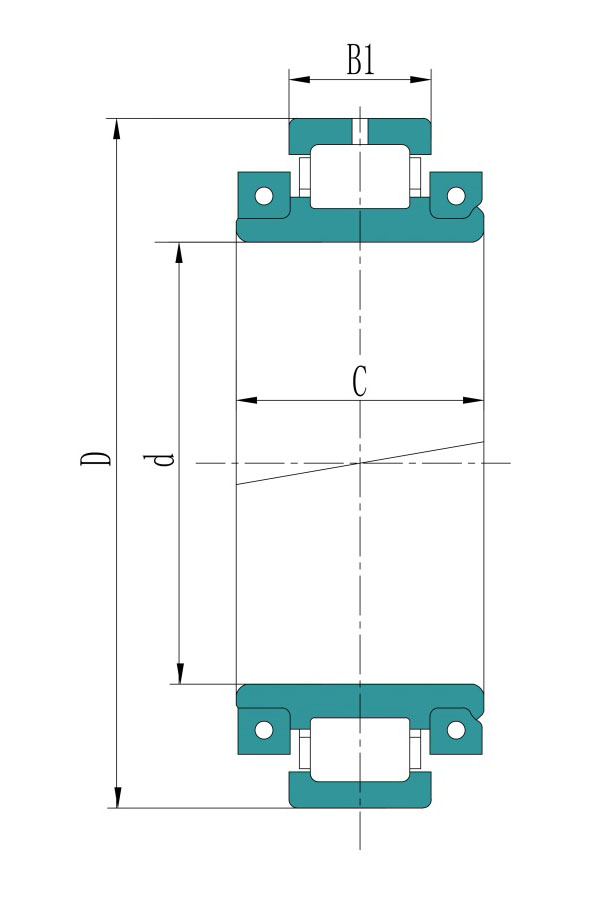

Inner diameter (d) :
775 mm
Outer diameter (D) :
945 mm
Width of inner ring (C) :
165 mm
Width (B1) :
80 mm
Basic dynamic load rating,radial :
1762 KN
Basic static load rating,radial :
3974 KN
Load direction :
Radial
Ring material :
Bearing steel GCr15
Rolling element material :
Bearing steel GCr15
Number of rolling element rows :
Single Row
Bearing Type :
Split Cylindrical Roller Bearings
Lubrication :
Oil
Bearing clearances :
CN/C2/C3
Temperature :
-30 ℃ to +110 ℃
Seal type :
Open Type
Description
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
QIBR - 01 B 775M Split Roller Bearings Advantages and Applications
QIBR - 01 B 775M Split Roller Bearings Characteristics
Features & Benefits
Split Roller Bearings are engineered for heavy industrial applications where quick maintenance, high load capacity, and reliability are critical. Their two-piece split design allows for easy installation and replacement without shaft disassembly, significantly reducing downtime in demanding environments.
