01 B 1300
- Inner diameter:
- 13 inch
- Outer diameter:
- 463.55 mm
- Width:
- 136.0 mm
- Mass:
- 72.0 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - 01 B 1300
Brand :
QIBR
Rolling element type :
Roller
Measurement system :
Imperial

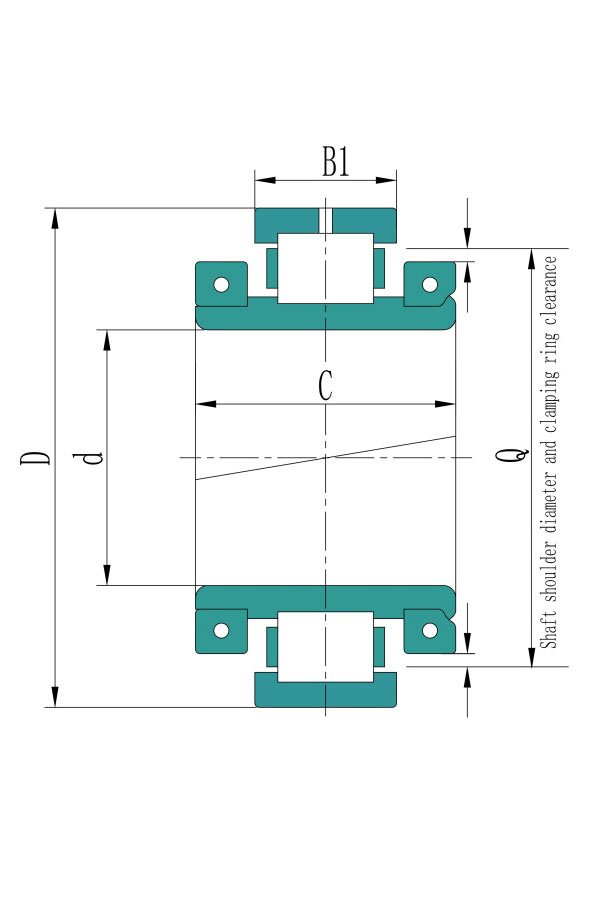

Inner diameter (d) :
13 inch
Outer diameter (D) :
463.55 mm
Width of inner ring (C) :
136.0 mm
Width (B1) :
74.6 mm
Shaft diameter and clamping ring clearance (Q) :
432 mm
Basic dynamic load rating,radial :
8941 KN
Basic static load rating,radial :
638 KN
Basic dynamic load rating,axial :
89.0 KN
MAX speed :
590 rpm
Axial displacement value :
10 mm
MAX axial displacement value :
23 mm
Weight :
72.0 kg
Load direction :
Radial
Ring material :
Bearing steel GCr15
Rolling element material :
Bearing steel GCr15
Number of rolling element rows :
Single Row
Bearing Type :
Split Cylindrical Roller Bearings
Lubrication :
Oil
Bearing clearances :
CN/C2/C3
Temperature :
-30 ℃ to +110 ℃
Seal type :
Open Type
Description
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Shaft diameter and clamping ring clearance (Q),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Basic dynamic load rating,axial,
MAX speed ,
Axial displacement value,
MAX axial displacement value,
Weight,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
Inner diameter (d),
Outer diameter (D),
Width of inner ring (C),
Width (B1),
Shaft diameter and clamping ring clearance (Q),
Basic dynamic load rating,radial,
Basic static load rating,radial,
Basic dynamic load rating,axial,
MAX speed ,
Axial displacement value,
MAX axial displacement value,
Weight,
Load direction,
Ring material,
Rolling element material,
Number of rolling element rows,
Bearing Type,
Lubrication,
Bearing clearances,
QIBR - 01 B 1300 Split Roller Bearings Advantages and Applications
QIBR - 01 B 1300 Split Roller Bearings Characteristics
Features & Benefits
Split Roller Bearings are engineered for heavy industrial applications where quick maintenance, high load capacity, and reliability are critical. Their two-piece split design allows for easy installation and replacement without shaft disassembly, significantly reducing downtime in demanding environments.
