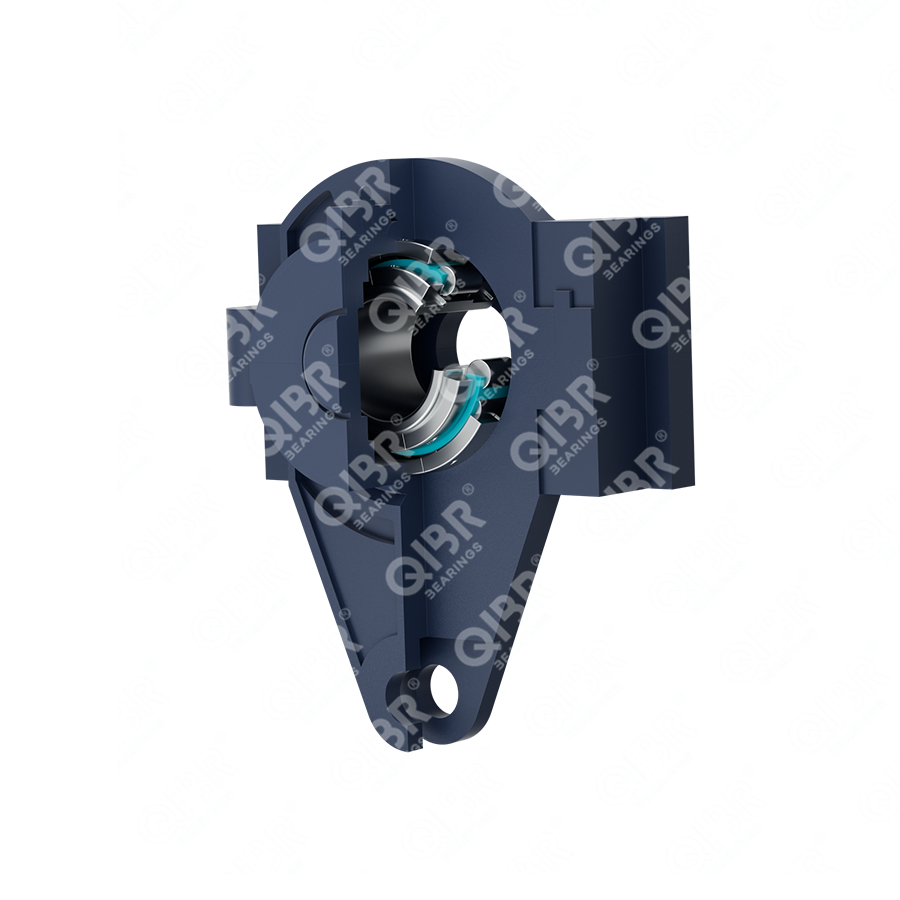

TT03+01E BCTT 204
- Inner diameter:
- 2 1/4 inch
- Mass:
- 13 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - TT03+01E BCTT 204
Brand :
QIBR
Rolling element type :
Roller
Measurement system :
Imperial
Housing model :
TT03
Bearing model :
01E BCTT 204
Bore :
2 1/4 inch
Length guidance groove (b) :
128 mm
Hight (W) :
235 mm
Distance between the bottom of the guide (D) :
203 mm
Distance from mounting hole to center line of housing (A) :
146 mm
Length total (a) :
280 mm
Pin diameter (X) :
24 mm
Distance from center line to end of housing (V) :
102 mm
Distance from the center line of the bearing seat to the shaft insertion end (K) :
30 mm
Mounting step (P) :
20 mm
Distance from mounting hole to step (H) :
32 mm
Guide groove width (O) :
30 mm
Distance from guidance groove to end face (R) :
29 mm
Housing width (L) :
104 mm
Weight :
13 kg
Ring material :
Bearing steel GCr15
Rolling element material :
Bearing steel GCr15
Number of rolling element rows :
Single Row
Bearing Type :
Take-up Bearing Units
Lubrication :
Grease
Bearing clearances :
CN/C2/C3
Temperature :
-30 ℃ to +110 ℃
Seal type :
