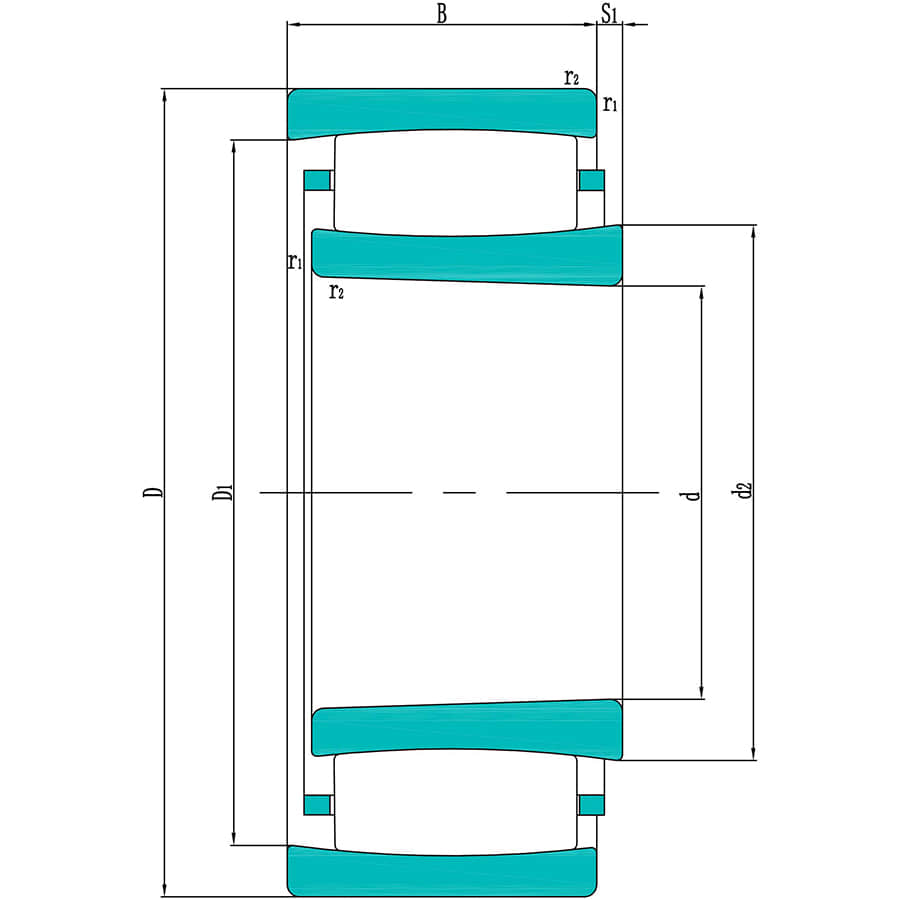

C 3076 KM
- Inner diameter:
- 380 mm
- Outer diameter:
- 560 mm
- Width:
- 135 mm
- Mass:
- 110 Kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - C 3076 KM
Description
QIBR - C 3076 KM Spherical Roller Bearing Advantages and Applications
C 3076 KM Spherical Roller Bearing, has self-aligning ability, good impact resistance, Inner diameter (d) is 380 mm, Outer diameter (D) is 560 mm, Overall width (B) is 135 mm, Weight is 110 kg, suitable for ship steering gear, rolling mills, bulldozers and compressors, etc., is the most widely used bearing in working conditions with large impact force.
QIBR - C 3076 KM Spherical Roller Bearing Characteristics
C 3076 KM Spherical Roller Bearing, long life, high cost performance. C 3076 KM Spherical Roller Bearing, can bear radial load and bidirectional axial load at the same time, suitable for mechanical equipment with high stability requirements.
C 3076 KM Spherical Roller Bearings Features and Advantages
High load capacity: Capable of withstanding large radial loads and bidirectional axial loads, making it suitable for heavy-duty and impact vibration load environments.
Self-aligning Performance: The outer ring raceway is spherical, effectively compensating for misalignment due to installation errors or shaft deformation.
High-Temperature Performance: Spherical roller bearings have a wide operating temperature range, suitable for applications in high-temperature environments.
Vibration Resistance: Capable of accommodating changes in relative position due to thermal expansion or installation errors, suitable as a free-end bearing.
Application: Widely used in mining, marine, milling applications, coal machinery, wind turbines, paper printing, steel metallurgy, electric vehicles, and large machinery.
QIBR - C 3076 KM Spherical Roller Bearings Optimization
High-Performance Materials: Different materials such as GCr15, AISI 440C, and 42CrMo can be provided based on customer requirements.
Structural Optimization: The bearing structure and geometry can be optimized according to customer needs to enhance alignment performance and operational stability.
Lubricating Grease: Selection of appropriate lubricants like Mobil SHC 100, SKF LGEP 2, or Shell Gadus S2 V220 based on the bearing's working conditions or customer requirements.
Customization: Bearings can be designed and optimized by QIBR according to customer-specific working conditions and requirements.
QIBR - C 3076 KM Spherical Roller Bearings Quality Control
Dimension measurement: Using various high-precision instruments, multiple dimensions of the bearing are measured with an accuracy of up to 0.001mm.
Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.
Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: A professional metallographic microscope is used to analyze the internal metallographic structure of the metal.
Form and Position Tolerance: A profilometer is used to measure the geometric shape and relative position of the bearing.
Noise monitoring: Vibration levels during operation are monitored using a vibration meter to obtain noise data.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits
Spherical roller bearings are rolling bearings that can bear both radial and axial loads. The "spherical" in its name refers to its ability to self-adjust to accommodate axis deviation or tilt when the bearing is installed. This type of bearing is usually composed of an inner ring, an outer ring, rollers (cylindrical rollers) and a cage.
