191.50.6300.990.41.1502

Inner diameter:: 6035 mm

Outer diameter:: 6715.2 mm

Width:: 268 mm

Mass:: 10536 kg

We will provide you with the most suitable solution.

Image may differ from product. See technical specification for details.

Brand : QIBR

Rolling element type : Roller

Measurement system : Metric

Weight : 10536 kg

Outer diameter (Da) : 6715.2 mm

Inner diameter (Di) : 6035 mm

Overall height (H) : 268 mm

External bolt circle diameter (La) : 6500 mm

Internal bolt circle diameter (Li) : 6125 mm

Number of bolt holes per circle (n) : 100

Bolt hole diameter (B) : 45 mm

Bolt size : 42 mm

Number of grease nipples : 18

Diameter (O) : 6360 mm

Diameter (U) : 6346 mm

Ring height (H1) : 203 mm

Ring height (H2) : 258 mm

Distance at bottom outer ring/inner ring (Hu) : 10 mm

Distance at top outer ring/inner ring (Ho) : 65 mm

Gear P.C.D. : 6624 mm

Module : 24 mm

Number of teeth (z) : 276

Addendum modification (x*m) : +24 mm

Addendum reduction (k.m) : -2.4 mm

Tooth width (b) : 203 mm

Permissible tangential forces normal : 423.6 KN

Permissible tangential forces MAX : 847.2 KN

Gear type : External Gear

Temperature : -20℃ to +120℃

Seal type : Closed Type

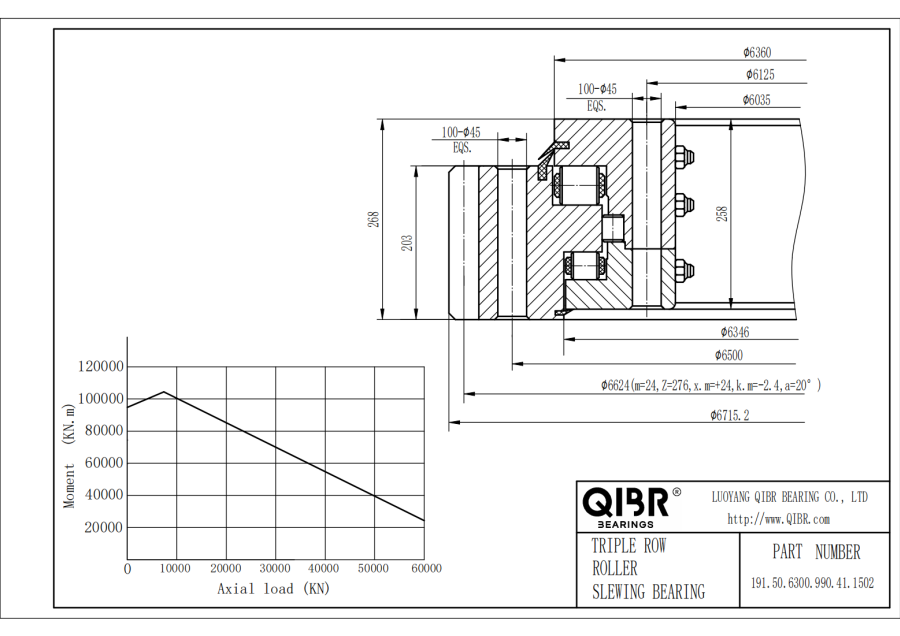

Download 191.50.6300.990.41.1502 Drawing

QIBR - 191.50.6300.990.41.1502 Slewing Bearing Advantages and Applications

191.50.6300.990.41.1502 Slewing Bearing, strong load capacity, smooth operation, Inner diameter (Di) is 6035 mm，Outer diameter (Da) is 6715.2 mm，Overall height (H) is 268 mm，Weight is 10536 kg, suitable for high-speed rail, aircraft, offshore drilling platforms, tower cranes and aerial work vehicles, etc., is the most widely used bearing in working conditions requiring high precision.

QIBR - 191.50.6300.990.41.1502 Slewing Bearing Characteristics

191.50.6300.990.41.1502 Slewing Bearing, low maintenance cost, easy maintenance and installation. 191.50.6300.990.41.1502 Slewing Bearing, can bear radial load, axial load and overturning moment at the same time, suitable for mechanical equipment with high load-bearing capacity requirements.

191.50.6300.990.41.1502 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - 191.50.6300.990.41.1502 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - 191.50.6300.990.41.1502 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.

Features & Benefits

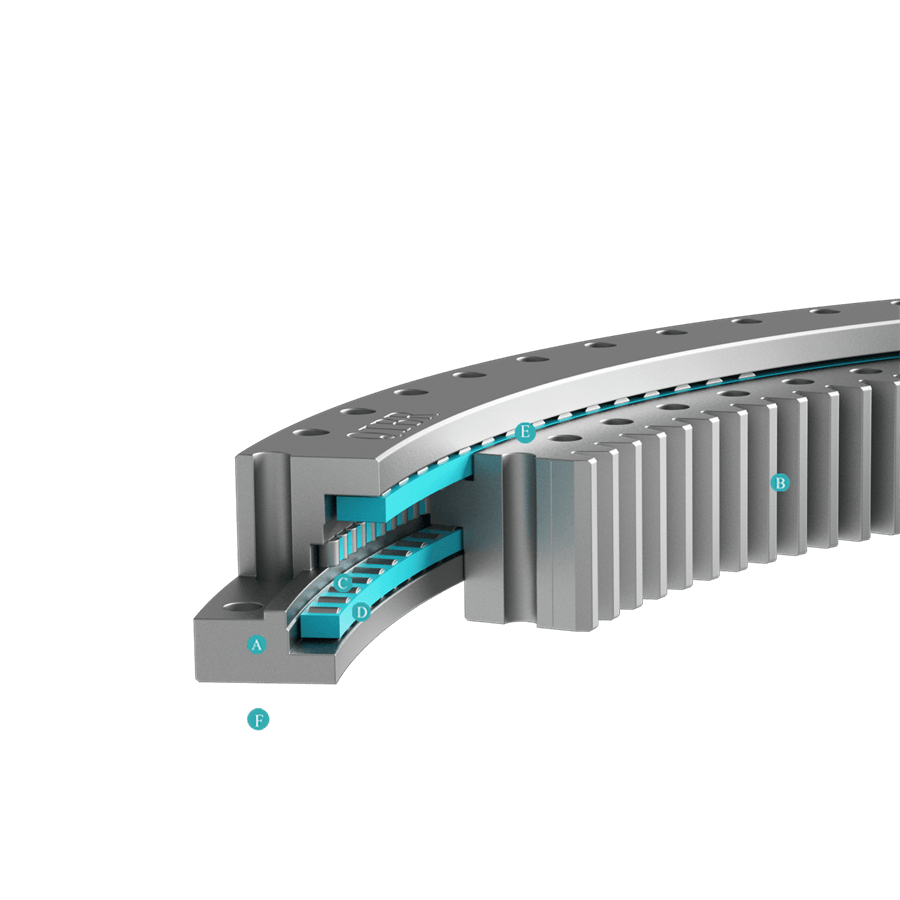

The slewing bearing consists of five essential components: the inner ring, which rotates; the outer ring, which remains stationary; rolling elements that facilitate movement; spacers for even distribution; and seals that protect against contaminants and retain lubrication.

A:Outer Ring

The outer ring has excellent mechanical performance, with high strength and toughness. After quenching and tempering (Q+T), it exhibits fatigue resistance, impact resistance, and excellent low-temperature impact toughness.

B:Inner ring

The inner ring has excellent mechanical performance, with high strength and toughness. After quenching and tempering (Q+T), it exhibits fatigue resistance, impact resistance, and excellent low-temperature impact toughness.

C:Rolling element

Rollers and balls are both types of rolling elements, which are the most crucial components of rotary support bearings and the most commonly used rolling elements in the bearing industry.

D:Spacer

It is located between the outer raceway, inner raceway, and rollers/balls of the bearing. It is a isolator block that serves as a cage.

E:Seal

Its role serves two purposes: Firstly, to prevent the loss of lubricating grease or oil inside the bearing, ensuring proper lubrication. Secondly, to shield the bearing from external dust or harmful gases, thus preventing damage.

F:Grease

To ensure the smooth operation of the bearing, it is necessary to inject lubricating grease or oil between the inner and outer rings of the bearing. The function of lubricating grease or oil is to reduce friction coefficient and wear, minimize bearing heat and friction losses, and enhance bearing lifespan.
