NBL

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Inner Diameter

120mm-8000mm

Outer Diameter

280mm-8000mm

Weight

20kg-8000kg

Structures

Outer Ring, Inner Ring, Spacer, Rolling element, Seal

Brand

QIBR/OEM/Neutral

Package

Standard Export Package

Material

42CrMo, 50Mn, or Stainless Steel

Applications

Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

QIBR

Model Selection

Filters

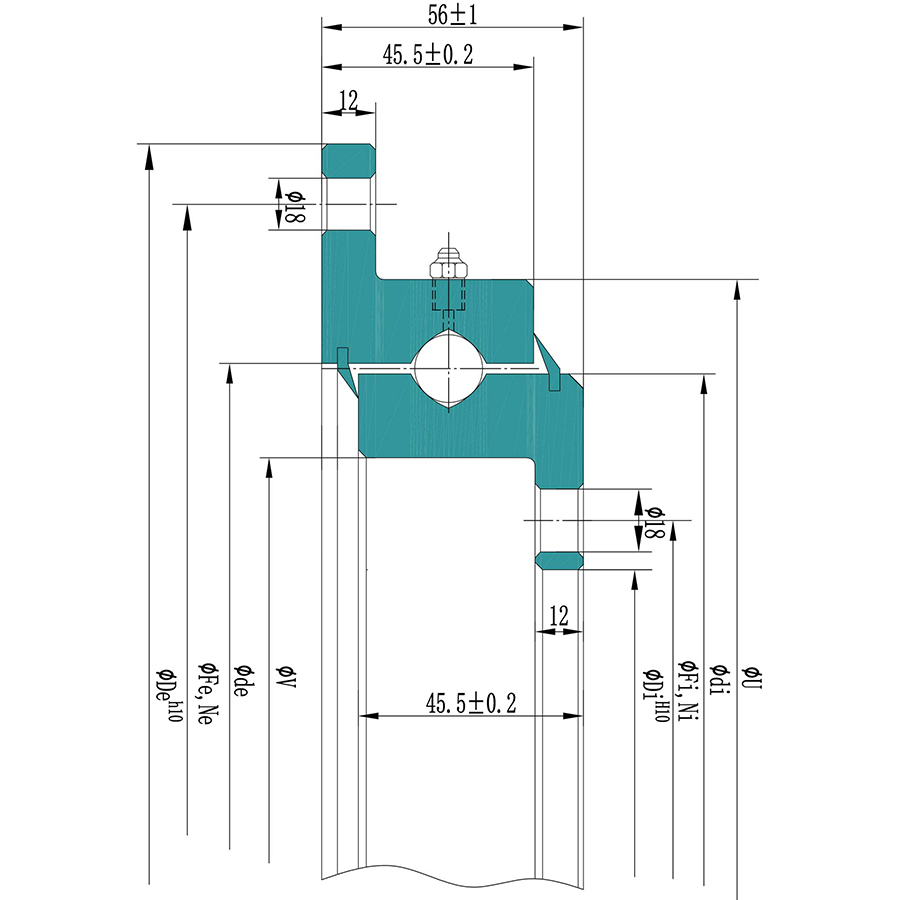

NO. Product Product Number Internal diameter on outer ring（de） External diameter on inner ring (di) Weight Gear Type Flange diameter at outer ring (U) Flange diameter on inner ring （V）
1 NBL.20.0314.200-1PPN/ NBL.20.0314.200-1PPN 315.5mm 312.5mm 19kg No Gear 353mm 269mm
2 NBL.20.0414.200-1PPN/ NBL.20.0414.200-1PPN 415.5mm 412.5mm 25kg No Gear 453mm 369mm
3 NBL.20.0544.200-1PPN/ NBL.20.0544.200-1PPN 545.5mm 542.5mm 33kg No Gear 583mm 499mm
4 NBL.20.0644.200-1PPN/ NBL.20.0644.200-1PPN 645.5mm 642.5mm 40kg No Gear 683mm 599mm
5 NBL.20.0744.200-1PPN/ NBL.20.0744.200-1PPN 745.5mm 742.5mm 46kg No Gear 783mm 699mm
6 NBL.20.0844.200-1PPN/ NBL.20.0844.200-1PPN 845.5mm 842.5mm 52kg No Gear 883mm 799mm
7 NBL.20.0944.200-1PPN/ NBL.20.0944.200-1PPN 945.5mm 942.5mm 58kg No Gear 983mm 899mm
8 NBL.20.1094.200-1PPN/ NBL.20.1094.200-1PPN 1095.5mm 1092.5mm 68kg No Gear 1133mm 1049mm
9 NBL.30.0955.200-1PPN/ NBL.30.0955.200-1PPN 953.5mm 956.5mm 131kg No Gear 1017mm 893mm
10 NBL.30.1055.200-1PPN/ NBL.30.1055.200-1PPN 1053.5mm 1056.5mm 145kg No Gear 1117mm 993mm
11 NBL.30.1155.200-1PPN/ NBL.30.1155.200-1PPN 1153.5mm 1156.5mm 159kg No Gear 1217mm 1093mm
12 NBL.30.1255.200-1PPN/ NBL.30.1255.200-1PPN 1253.5mm 1256.5mm 172kg No Gear 1317mm 1193mm
13 NBL.30.1355.200-1PPN/ NBL.30.1355.200-1PPN 1353.5mm 1356.5mm 186kg No Gear 1417mm 1293mm
14 NBL.30.1455.200-1PPN/ NBL.30.1455.200-1PPN 1453.5mm 1456.5mm 200kg No Gear 1517mm 1393mm
15 NBL.20.0314.201-2PPN/ NBL.20.0314.201-2PPN 315.5mm 312.5mm 19kg No Gear 353mm 269mm
16 NBL.20.0414.201-2PPN/ NBL.20.0414.201-2PPN 415.5mm 412.5mm 25kg No Gear 453mm 369mm
17 NBL.20.0544.201-2PPN/ NBL.20.0544.201-2PPN 545.5mm 542.5mm 33kg No Gear 583mm 499mm
18 NBL.20.0644.201-2PPN/ NBL.20.0644.201-2PPN 645.5mm 642.5mm 40kg No Gear 683mm 599mm
19 NBL.20.0744.201-2PPN/ NBL.20.0744.201-2PPN 745.5mm 742.5mm 46kg No Gear 783mm 699mm
20 NBL.20.0844.201-2PPN/ NBL.20.0844.201-2PPN 845.5mm 842.5mm 52kg No Gear 883mm 799mm
21 NBL.20.0944.201-2PPN/ NBL.20.0944.201-2PPN 945.5mm 942.5mm 58kg No Gear 983mm 899mm
22 NBL.20.1094.201-2PPN/ NBL.20.1094.201-2PPN 1095.5mm 1092.5mm 68kg No Gear 1133mm 1049mm
23 NBL.30.0955.201-2PPN/ NBL.30.0955.201-2PPN 953.5mm 956.5mm 131kg No Gear 1017mm 893mm
24 NBL.30.1055.201-2PPN/ NBL.30.1055.201-2PPN 1053.5mm 1056.5mm 145kg No Gear 1117mm 993mm
25 NBL.30.1155.201-2PPN/ NBL.30.1155.201-2PPN 1153.5mm 1156.5mm 159kg No Gear 1217mm 1093mm
26 NBL.30.1255.201-2PPN/ NBL.30.1255.201-2PPN 1253.5mm 1256.5mm 172kg No Gear 1317mm 1193mm
27 NBL.30.1355.201-2PPN/ NBL.30.1355.201-2PPN 1353.5mm
