2780DBD101t

Inner diameter:: 2780.8 mm

Outer diameter:: 3255 mm

Width:: 222 mm

Mass:: 2550 kg

We will provide you with the most suitable solution.

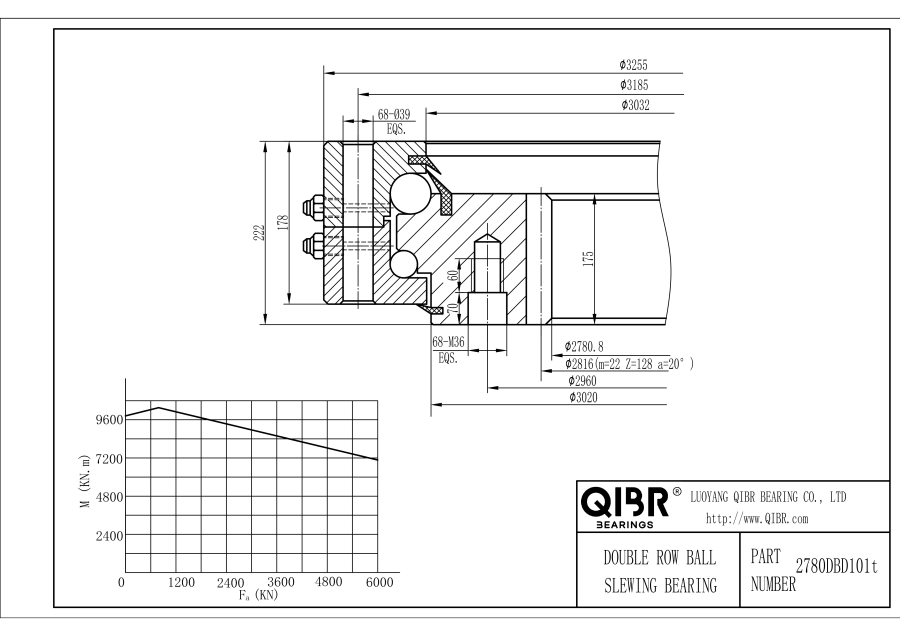

Image may differ from product. See technical specification for details.

Rolling element type : Roller

Measurement system : Metric

Outer diameter (Da) : 3255 mm

Inner diameter (Di) : 2780.8 mm

Overall height (H) : 222 mm

Gear pitch circle diameter : 2816 mm

Module : 22 mm

Number of teeth (z) : 128

Tooth width (b) : 175 mm

Outer ring width (h) : 178 mm

Distance at top outer ring-inner ring (O) : 47 mm

Internal diameter on outer ring (Oa) : 3022 mm

External diameter on inner ring (Oi) : 3020 mm

Step diameter on inner ring (Ui) : Ask Us

External bolt circle diameter (La) : 3185 mm

Number of bolt holes at outer ring (Za) : 68

Bolt hole diameter-outer (da) : φ39 mm

Bolt hole depth-outer (ta) : 2960 mm

Internal bolt circle diameter (Li) : 68 mm

Number of bolt holes at inner ring (Zi) : M36

Counter bore depth (t1) : 70 mm

Bolt hole depth-inner (t2) : 60 mm

MAX tangential force : 285000 N

Nominal related axial static load : 21600 N

Weight : 2550 kg

Gear type : Internal Gear

Temperature : -20℃ to +120℃

Seal type : Closed Type
