2310 K+H 2310
- Inner diameter:
- 45 mm
- Outer diameter:
- 110 mm
- Width:
- 40 mm
- Mass:
- 1.9 kg
We will provide you with the most suitable solution.

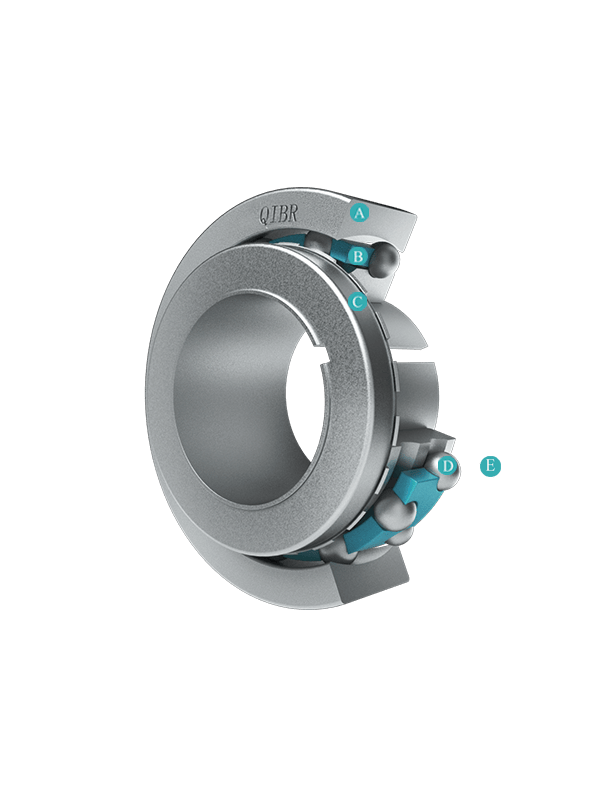

Image may differ from product. See technical specification for details.
Specifications
Seris - 2310 K+H 2310
Description
QIBR - 2310 K+H 2310 Self-aligning Ball Bearings Advantages and Applications
2310 K+H 2310 Self-aligning Ball Bearings, has self-aligning function, strong durability, Bore is 45 mm，Outer diameter (D) is 110 mm，Width (B) is 40 mm，Mass is 1.9 kg, suitable for tractors, pumps, paper machines and rolling mills, etc., and is the most widely used bearing in working conditions with high performance requirements.
QIBR - 2310 K+H 2310 Self-aligning Ball Bearings Characteristics
2310 K+H 2310 Self-aligning Ball Bearings, improve equipment precision and operate with low noise. 2310 K+H 2310 Self-aligning Ball Bearings, can bear radial load and axial load at the same time, suitable for mechanical equipment with high precision requirements.
2310 K+H 2310 Self-aligning Ball Bearing Features and Advantages
Accommodates 3-Degree Misalignment: Compensates for up to 3 degrees of static and dynamic misalignment.
Light Load Performance: Performs well under light loads with low load requirements.
Low Noise: The loose fit between the rolling elements and the outer ring generates low noise levels, making it especially suitable for household items like fans.
Extended Service Life: Exhibits high-speed performance with reduced heat and friction, prolonging its service life and minimizing maintenance.
Application: Widely used in industrial fans, industrial machinery, material handling, food and beverage, automotive components, pulp and paper industries, agricultural equipment, and mining machinery.
QIBR - 2310 K+H 2310 Self-aligning Ball Bearing Optimization
Radial Clearance:Can be supplied with CN or C3 group clearance, or customized clearance based on customer requirements.
Grease Replacement: Select lubrication based on bearing operating conditions, such as SKF LGEV 2 or Fuchs MOLY HD 0.
Cage Material: Select lubrication according to bearing working requirements, such as SKF LGMT 2, Timken GR217, or Shell Gadus S2 V220AC.
Further Customization: QIBR can design and optimize bearings according to customer drawings and operating conditions.
QIBR - 2310 K+H 2310 Self-aligning Ball Bearing Quality Control
Dimension measurement: Multiple high-precision instruments are used to measure various dimensions of the bearing, with an accuracy of up to 0.001mm.
Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.
Hardness measurement: The surface hardness of the bearing is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: The internal metallographic structure is analyzed using a professional metallographic microscope.
Geometric tolerance: A contour gauge measures the bearing's geometric shape and relative position.
Noise monitoring: A vibration meter monitors the vibration during operation to obtain noise data.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits
Accommodate static and dynamic misalignment, excellent high-speed performance.
