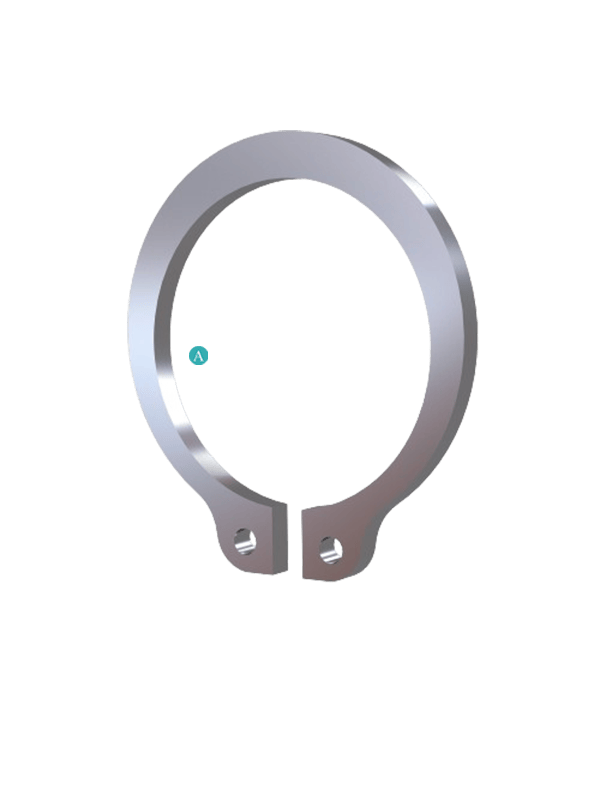

DIN 471 D1400 A6

Inner diameter:: 6 mm

Mass:: 0.084 g

We will provide you with the most suitable solution.

Image may differ from product. See technical specification for details.

Brand : QIBR

Measurement system : Metric

Shaft diameter : 6 mm

Thickness (T) : 0.70 mm

Thickness tolerance : 0 to -0.05 mm

Inside diameter of rings for shafts in the free state (d3) : 5.6 mm

Shaft washer inner diameter tolerance : +0.04 to -0.15 mm

Lug height (a) : 2.7 mm

MAX radial width of the ring (b) : 1.3 mm

Hole diameter (V) : 1.2 mm

Clearance of circlip on shaft (C1) : 11.7 mm

Clearance of circlip in groove (C2) : 11.1 mm

Weight : 0.084 g

Groove diameter (d2) : 5.7 mm

Groove diameter tolerance : 0 to -0.04 mm

Groove width (m) : 0.80 mm

Groove depth (t) : 0.15 mm

Shoulder width (n) : 0.5 mm

Load bearing capacity of the groove : 0.4 kN

Loading capacity : 1.45 kN

Groove area : 2.8 m㎡

Load factor : 10.40

Detaching speed of external rings : 114000 rpm

Material : Carbon spring steel

Applications : All branches of industry and machine, instrument and vehicle construction

Download DIN 471 D1400 A6 Drawing

DIN 471 D1400 A6 Ring Product Features and Advantages

Easy Installation: Provides greater load-bearing capacity in both radial and axial directions, effectively extending the service life of the bearing.

Reliable Fixing Performance: Effectively secures and connects different components, preventing loosening or detachment under vibration or impact conditions.

Strong Adaptability: Suitable for components of various shapes and sizes, allowing for adjustments and selections based on different application needs.

Cost-Effectiveness: Relatively low production costs, strong durability, reduced replacement frequency, and lower overall maintenance and operating costs.

High Strength: Capable of withstanding significant loads, with good tensile strength and compressive capacity.

Application: Widely used in the automotive, aerospace, machinery, construction, and other industries.

QIBR - DIN 471 D1400 A6 Ring Product Optimization

High-Performance Materials: Materials for snap rings can be replaced based on different working conditions, such as stainless steel, carbon steel, and plastic.

Surface Heat Treatment: Heat treatments such as coating, oxidation, and polishing are used to enhance wear resistance, corrosion resistance, and aesthetics.

More customization: QIBR can customize snap ring sizes and materials according to customer drawings and operational requirements.

QIBR - DIN 471 D1400 A6 Ring Product quality control

Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, with maximum precision reaching 0.001mm.

Hardness measurement: The hardness of the bearing surface is measured using a hardness tester, with a precision of ±0.5HRC.

Metallographic analysis: Professional metallographic microscopes are used to analyze the internal metallographic structure of metals.

Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.
