NN30/500
- Inner diameter:
- 500 mm
- Outer diameter:
- 720 mm
- Width:
- 167 mm
- Mass:
- 205 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - NN30/500
Description
QIBR - NN30/500 Precision Cylindrical Roller Bearings Advantages and Applications

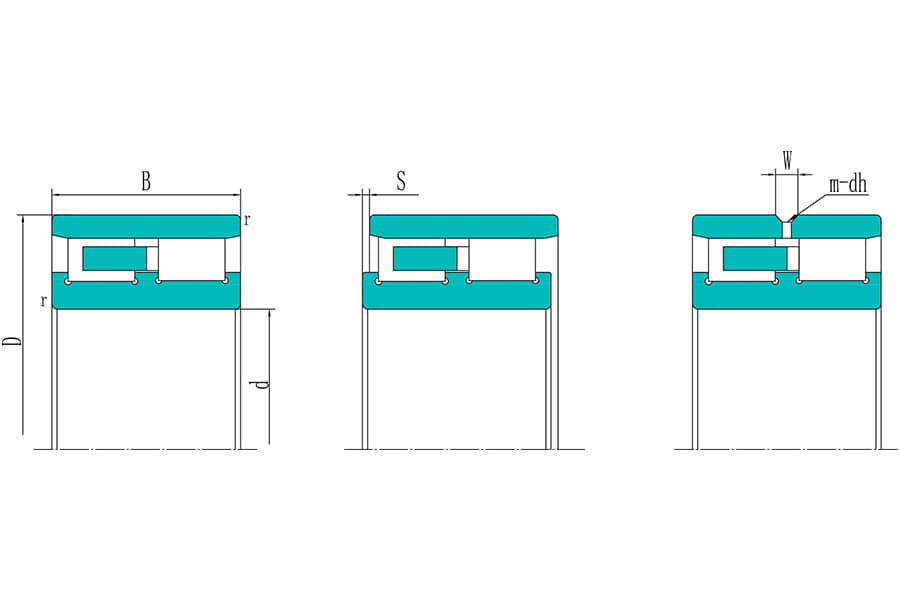

NN30/500 Precision Cylindrical Roller Bearings, high precision, high rigidity, Inner diameter (d) is 500 mm, Outer diameter (D) is 720 mm, Width (B) is 167 mm, Weight is 205 kg, suitable for machine tools, motors, industrial pumps and wind turbine main shafts, etc., and is the most widely used bearing in working conditions with high precision requirements.
QIBR - NN30/500 Precision Cylindrical Roller Bearings Characteristics
NN30/500 Precision Cylindrical Roller Bearings, high reliability, easy to install and maintain. NN30/500 Precision Cylindrical Roller Bearings, can withstand radial load and small axial load, suitable for mechanical equipment with high safety requirements.
NN30/500 Precision Cylindrical Roller Bearings Features and Advantages
High Precision: These bearings offer extremely high precision, with a precision grade of P4, making them suitable for applications requiring high rotational accuracy.
High Load Capacity: The line contact between the cylindrical rollers and raceways allows them to bear large radial loads.
Low Friction: The line contact between the rollers and raceways results in low friction, enhancing mechanical efficiency.
Floating Characteristics: There is no constraint force between the rollers and the raceways without flanges, allowing compensation for length changes during rotational motion, making them suitable as floating bearings.
Application: Widely used in machine tool manufacturing, precision machining equipment, heavy-duty and high-speed machinery, aerospace, research and experimental equipment, and other fields.
QIBR - NN30/500 Precision Cylindrical Roller Bearings Optimization
High-Performance Materials: Different materials, such as 100Cr6, GCr15, 20CrMo, AISI 52100, etc., can be provided according to customer requirements.
Cage Material: The cage material can be selected based on customer needs, including steel, brass, nylon, polyamide, PEEK, and PPS, among others.
Lubricants: Suitable lubricants, such as SKF LGHP 2, RENOLIT LX EP 2, Shell Gadus S2 V100 2, etc., can be chosen based on operating conditions and specific parts of the bearing.
More customization: QIBR can design and optimize bearings according to the customer's operating conditions and requirements.
QIBR - NN30/500 Precision Cylindrical Roller Bearings Quality Control
Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearing, with an accuracy of up to 0.001mm.
Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.
Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: The internal metallographic structure of the metal is analyzed using a professional metallographic microscope.
Geometric tolerance: A contour measuring instrument is used to measure the geometric shape and relative position of the bearing.
Noise monitoring: Vibration data is obtained by monitoring the vibrations during operation with a vibration meter.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits
Cylindrical roller bearings are widely used in large motor, machine tool spindle, axle box, diesel engine crankshaft, automobile and so on. The common features of these application scenarios are high speed, high load, and high precision. cylindrical roller bearing for its high load capacity, low noise, high speed characteristics, and the rolling element and the ring flange friction is small, is especially suitable for the need to bear heavy loads and high-speed rotation occasions. In addition, cylindrical roller bearing also has the structural characteristics of the inner ring and outer ring can be separated, makes installation and disassembly is relatively simple, further broadens its application range.
