SSR25XW-N
- Inner diameter:
- 83 mm
- Outer diameter:
- 48 mm
- Width:
- 33 mm
- Mass:
- 0.4 kg
We will provide you with the most suitable solution.

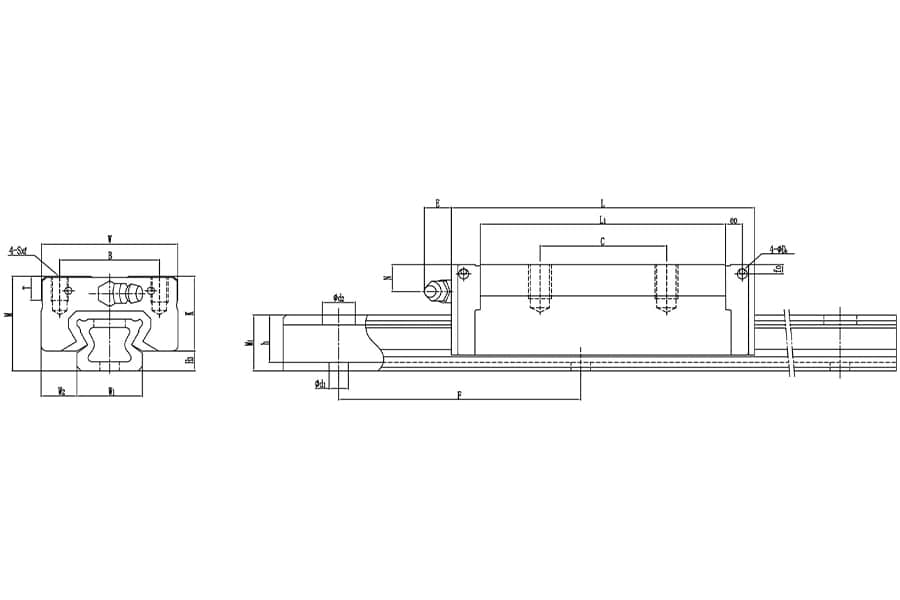

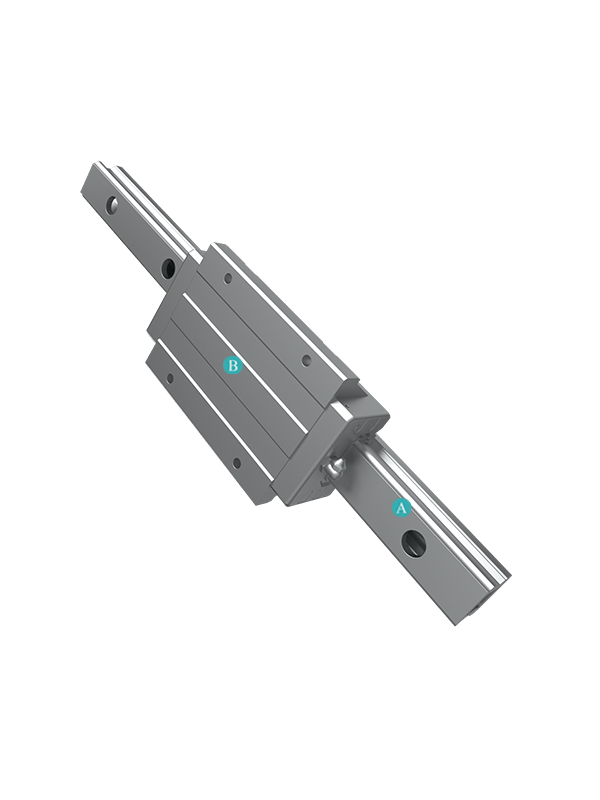

Image may differ from product. See technical specification for details.
Specifications
Seris - SSR25XW-N
Description
QIBR - SSR25XW-N Machine Element Advantages and Applications
SSR25XW-N Machine Element, low friction, high speed,Height (M) is 33 mm，Width (W) is 48 mm，Length (L) is 83 mm，Weight-LM rail is 1.62 kg/m， suitable for aircraft landing gear, railways, X-ray machines and electric cutting machines, etc., is the most widely used bearing in working conditions with high speed requirements.
QIBR - SSR25XW-N Machine Element Characteristics
SSR25XW-N Machine Element, wide adaptability, easy installation. SSR25XW-N Machine Element, bears axial, radial and tilting loads at the same time, suitable for mechanical equipment with high efficiency requirements.
SSR25XW-N Rail Product Features and Advantages
High stability: The rollers are arranged crosswise, the contact area is increased, the elastic deformation is small, and the stability and accuracy of the movement are improved.
Structural design: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.
Low friction: The friction coefficient is extremely low and uniform, the stick-slip is low and the operation is smooth, the rolling friction is small, and the stability performance is good.
High rigidity: Compared with traditional products, the effective contact length of the rollers is increased, the pitch interval of the rollers is shortened, the number of rollers is large, and the rigidity of the guide rails is improved.
Application: It has a wide range of applications in precision machine tools, unloading systems of injection molding machines, loaders and unloaders of lathes, CT scanners for digital dental X-rays, sliding mechanisms of aircraft seats, etc.
QIBR - SSR25XW-N Rail Optimization
High-performance materials: Different materials can be provided according to customer needs, such as stainless steel, aluminum alloy, tungsten carbide, ceramics, etc.
Grease replacement: Choose the appropriate grease according to the working requirements of the guide rail, such as Mobil, Shell, SKF, Klüber, Fuchs, etc.
Surface treatment: Optimize the surface of the guide rail. According to customer needs, use surface treatment technologies such as nitriding, chrome plating or coating to enhance the wear resistance and corrosion resistance of the guide rail.
More customization: QIBR can design and optimize the guide rail according to customer requirements for drawings and guide rail working conditions.
QIBR - SSR25XW-N Rail Quality Control
Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the guide rail, with a maximum accuracy of 0.001mm.
Hardness measurement: Use a hardness tester to measure the surface hardness of the guide rail, with a measurement accuracy of ±0.5HRC.
Roughness measurement: Use a surface roughness tester to measure the surface roughness of the guide rail, with a maximum accuracy of ±0.01μm.
Load measurement: Use a force sensor to measure the load capacity of the guide rail under static and dynamic conditions.
Geometric tolerance: Use a profiler to measure the geometry and relative position of the guide rail.
Raw material control: Procurement of steel and parts from ISO 14001 certified suppliers ensures product stability while promoting sustainable development.
Features & Benefits
This part with Bearing balls, Bearing rollers, Rail, Cross-Roller Guide, etc included.
