Cylindrical Roller 32.15x36mm
- Outer diameter:
- 32.15 mm
- Width:
- 36 mm
- Mass:
- 0.22500 kg
We will provide you with the most suitable solution.

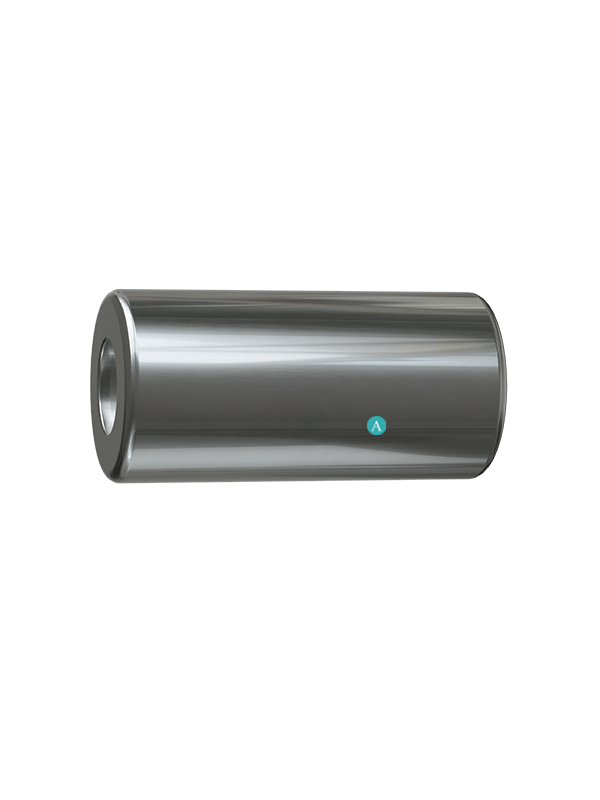

Image may differ from product. See technical specification for details.
Specifications
Seris - Cylindrical Roller 32.15x36mm
Brand :
QIBR
Measurement system :
Metric
Precision level :
G2
Diameter (Dw) :
32.15 mm
Length (Lw) :
36 mm
Mass :
0.22500 kg
Material :
52100
Hardness :
Rockwell C60
Heat treatment :
Hardened
Material composition aluminum :
0-0.050%
Material composition carbon :
0.93-1.10%
Material composition chromium :
1.30-1.60%
Material composition copper :
0-0.30%
Material composition manganese :
0.25-0.45%
Material composition molybdenum :
0-0.10%
Material composition nickel :
0-0.25%
Material composition oxygen :
0-0.0015%
Material composition phosphorus :
0.025% Max.
Material composition silicon :
0.15-0.35%
Material composition sulfur :
0.025% Max.
Material composition iron :
Remainder
Rohs :
Compliant
Reach :
Compliant
Description
Features & Benefits
This part with Bearing balls, Bearing rollers, Rail, Cross-Roller Guide, etc included.
Chrome rollers have the advantages of high hardness, wear resistance, fatigue resistance, dimensional stability, corrosion resistance, high load carrying and easy machining.
