BNF 2005-5

Outer diameter:
20 mm
Width:
56 mm
Mass:
0.57 kg

We will provide you with the most suitable solution.

BNF 2005-5

Image may differ from product. See technical specification for details.

Specifications

Seris - BNF 2005-5

Brand : QIBR
Rolling element type : Ball
Measurement system : Metric
Precision level : C5
Screw shaft outer diameter (d) : 20 mm
Lead (Ph) : 5 mm
Ball center-to-center diameter (dp) : 20.75 mm
Thread minor diameter (dc) : 17.2 mm
No. of loaded circuits rows X turns : 2X2.5
Basic load rating (Ca) : 15.1 N
Basic load rating (Coa) : 35 KN
Outer diameter (D) : 44 mm
Flange diameter (D1) : 67 mm
Overall length (L1) : 56 mm
H : 11 mm
B1 : 45 mm
PCD : 55 mm
d1 : 5.5 mm
d2 : 9.5 mm
h : 5.5 mm
Greasing hole (A) : M6
Overall length (L) : 410/510/610/710/810/1010 mm
l0 : 200/300/400/500/600/800 mm
l1 : 50 mm
l2 : 160 mm
d3 : 20 mm
d4 : 15.3/16.8 mm
Nut mass : 0.57 kg
Shaft mass : 1.65 kg/m
Temperature : -15 ℃ to +80 ℃
Seal type : Open Type
BNF 2005-5
Download BNF 2005-5 Drawing

Description

Screw shaft outer diameter (d), Lead (Ph), Ball center-to-center diameter (dp), Thread minor diameter (dc), No. of loaded circuits rows X turns, Basic load rating (Ca), Basic load rating (Coa), Outer diameter (D), Flange diameter (D1), Overall length (L1), H, B1, PCD, d1, d2, h, Greasing hole (A), Overall length (L), l0, l1, l2, d3, d4, Nut mass, Shaft mass,

QIBR - BNF 2005-5 Machine Element Advantages and Applications

BNF 2005-5 Machine Element, high precision, low friction, Screw shaft outer diameter (d) is 20 mm ，Outer diameter (D) is 44 mm，Overall length (L) is Overall length (L)， suitable for conveyor belts, telescopes, electric scooters and magnetic resonance imaging equipment, etc., is the most widely used bearing in working conditions with high precision requirements.

Screw shaft outer diameter (d), Lead (Ph), Ball center-to-center diameter (dp), Thread minor diameter (dc), No. of loaded circuits rows X turns, Basic load rating (Ca), Basic load rating (Coa), Outer diameter (D), Flange diameter (D1), Overall length (L1), H, B1, PCD, d1, d2, h, Greasing hole (A), Overall length (L), l0, l1, l2, d3, d4, Nut mass, Shaft mass,

QIBR - BNF 2005-5 Machine Element Characteristics

BNF 2005-5 Machine Element, stable operation, high cost performance. BNF 2005-5 Machine Element, can bear radial load and axial load at the same time, suitable for mechanical equipment with high precision requirements.

BNF 2005-5 Ball Screw Product Features and Advantages

Low friction: Rolling friction is adopted, friction loss is reduced, and higher transmission efficiency is achieved.

High precision: Provides good repeat positioning accuracy, suitable for applications requiring high-precision motion control.

Strong load capacity: Able to withstand large loads, maintain stable motion performance under high loads, suitable for heavy load applications.

Smooth motion: Able to achieve smooth linear motion during operation, reducing vibration and noise.

Application: Widely used in high-precision CNC machine tools, robot joint drives, medical equipment, measuring instruments, electronic equipment, aerospace and other fields.

QIBR - BNF 2005-5 Ball Screw Optimization

Adjustable Dimensions: The screw shaft's terminal end is unprocessed, allowing for additional machining to customize the shape and size according to the customer's ball screw requirements.

Process Optimization: The geometry of the threads and balls is optimized to increase contact area and load capacity.

Further Customization:QIBR can design and optimize ball screws according to customer drawings and operating conditions.

More customization: QIBR can design and optimize the ball screw according to customer requirements for drawings and ball screw working conditions.

QIBR - BNF 2005-5 Ball Screw Quality Control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the ball screw, with a maximum accuracy of 0.001mm.

Hardness measurement: Use a hardness tester to measure the surface hardness of the guide rail, with a measurement accuracy of ±0.5HRC.

Roughness measurement: Use a surface roughness meter to measure the surface roughness of the ball screw, with a maximum accuracy of ±0.01μm.

Load measurement: A load is applied using a force sensor, and the deformation of the ball screw is measured with a micrometer.

Geometric tolerance: Use a profiler to measure the geometric shape and relative position of the ball screw.

Raw material control: Procurement of steel and parts from ISO 14001 certified suppliers ensures product stability while promoting sustainable development.

Features & Benefits

This part with Bearing balls, Bearing rollers, Rail, Cross-Roller Guide, etc included.
BNF 2005-5

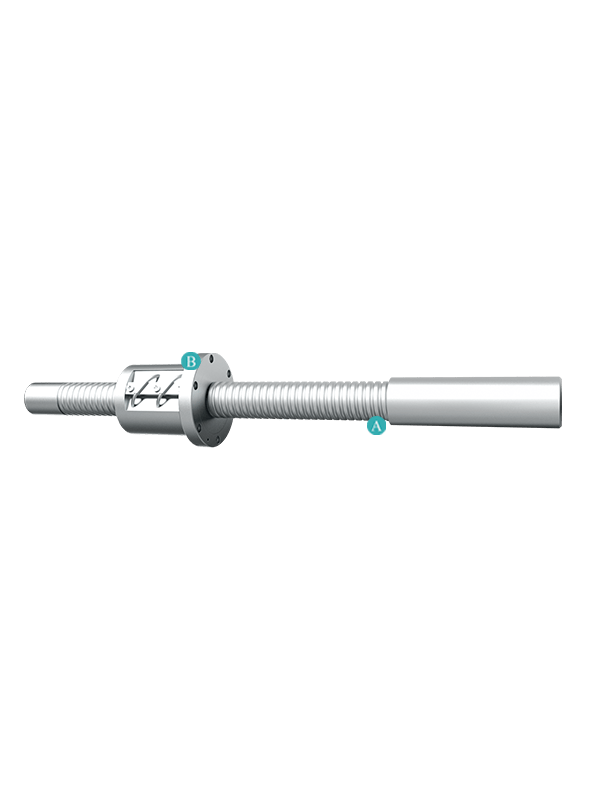

The screw is the main part of the ball screw, usually made of metal material, with a thread structure. The thread on the screw is usually a triangular thread, which is used to contact the balls inside the ball screw bearing, and generate a driving force when the screw is turned, thereby achieving linear motion.
The nut is a part that matches the screw, usually made of metal, with a thread structure inside that matches the screw thread. There is also a guide groove inside the nut for accommodating the ball.
