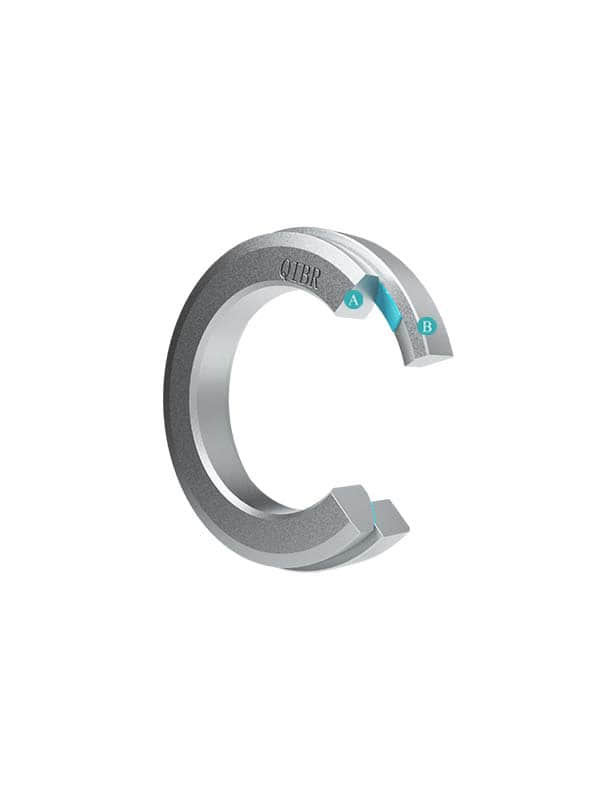

GE300AW
- Inner diameter:
- 11.811"/300 mm
- Outer diameter:
- 18.898"/480 mm
- Width:
- 4.331"/110 mm
- Mass:
- 191.84 lbs
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - GE300AW
Description
QIBR - GE300AW Joint Bearing Advantages and Applications
GE300AW Joint Bearing, large load-bearing capacity, wear resistance, Shaft (d) is 11.811"/300 mm, Outer diameter (D) is 18.898"/480 mm, {$Height (H)$} is {$Height (H)_value$}, Weight is 191.84 lbs , suitable for automobile suspension systems, pumping stations and excavators, etc., and is the most widely used bearing in working conditions with high load-bearing capacity requirements.
QIBR - GE300AW Joint Bearing Characteristics
GE300AW Joint Bearing, low maintenance cost, easy to install and maintain. GE300AW Joint Bearing, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high material requirements.
GE300AW Joint Bearings Features and Advantages
Reliability: High load capacity and durability reduce failures and downtime.
Structural Design: The inner and outer rings feature spherical and inner spherical surfaces, allowing rotation and swinging at any angle.
Load Capacity: Capable of withstanding significant radial and axial loads, suitable for high-stress and heavy-duty applications.
Self-Aligning Function: Equipped with self-aligning characteristics, it can automatically adjust during installation errors or movement, ensuring smooth operation.
Application: Widely used in fields such as engineering hydraulic cylinders, forging machine tools, construction machinery, automation equipment, automotive shock absorbers, and hydraulic machinery.
QIBR - GE300AW Joint Bearings Optimization
High-performance materials: Bearing materials can be replaced based on different working conditions, such as FRP, bearing steel, stainless steel, and other materials.
Surface Treatment: The bearing surface can be treated according to customer requirements, including phosphating, galvanizing, chrome plating, and lining, padding, or spraying on the sliding surfaces.
More customization: QIBR can design and optimize bearings based on customer usage conditions and needs.
QIBR - GE300AW Joint Bearings Quality Control
Dimension measurement: Various professional high-precision instruments are used to measure multiple dimensions of the bearing, with the highest precision reaching 0.001mm.
Rotational Accuracy: A dial gauge measures small surface defects or deviations, with a measurement accuracy of up to 0.001mm.
Hardness measurement: Use a hardness tester to measure the surface hardness of the guide rail, with a measurement accuracy of ±0.5HRC.
Metallographic Analysis: The internal metallographic structure of the metal is analyzed using a professional metallographic microscope.
Noise Monitoring: Vibration data is obtained by monitoring the vibrations during operation with a vibration meter.
Geometric tolerance: Use a profiler to measure the geometry and relative position of the guide rail.
Raw material control: Procurement of steel and parts from ISO 14001 certified suppliers ensures product stability while promoting sustainable development.
Features & Benefits
Joint bearings, also known as spherical plain bearings or spherical bearings, are mechanical components designed to accommodate misalignment between two parts. They consist of an inner ring with a spherical surface and an outer ring with a concave spherical bore. This design allows for smooth rotation and movement in multiple directions, making them suitable for applications where there are angular misalignments or oscillating movements. Joint bearings are commonly used in various industrial machinery and automotive applications, such as steering systems, suspension systems, and linkage mechanisms.
