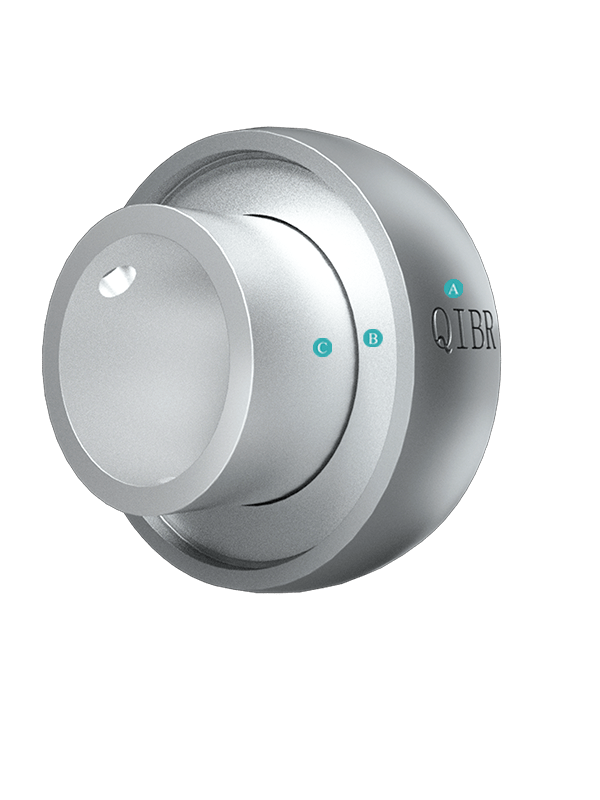

YAR 206-2RF/HV
- Inner diameter:
- 30 mm
- Outer diameter:
- 62 mm
- Width:
- 38.1 mm
- Mass:
- 0.3 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - YAR 206-2RF/HV
Description
QIBR - YAR 206-2RF/HV Insert Bearings Advantages and Applications
YAR 206-2RF/HVInsert Bearings, high precision, strong wear resistance, Bore is 30 mm, Outer diameter (D) is 62 mm, Mass is 0.3 kg, suitable for fans, crushers and harvesters, etc., and is the most widely used bearing in working conditions with high precision requirements.
QIBR - YAR 206-2RF/HV Insert Bearings Characteristics
YAR 206-2RF/HVInsert Bearings, high reliability, easy installation and maintenance. YAR 206-2RF/HVInsert Bearings, can bear radial load and axial load at the same time, suitable for mechanical equipment with high precision requirements.
YAR 206-2RF/HV Insert Bearings Features and Advantages
Modular Design: The modular design facilitates direct installation and replacement, enhancing the operational efficiency of equipment.
Strong Adaptability: Insert bearings can handle both radial and axial loads, demonstrating significant capability to accommodate misalignment.
Multiple Locking Mechanisms: These bearings feature various locking mechanisms to meet different installation requirements.·
Cost-Effectiveness: By optimizing the efficiency of rotating components, insert bearings reduce maintenance and replacement frequency, lowering operational costs.
Application: They are widely used in sectors such as agricultural machinery, automotive manufacturing, railway industry, mining and metallurgy, food processing equipment, logistics transport equipment, and textile machinery.
QIBR - YAR 206-2RF/HV Insert Bearings Optimization
Process Optimization: Processing parameters like cutting speed and feed rate are optimized based on customer requirements for bearing performance.
High-Performance Materials: Bearing materials can be replaced according to different working conditions, such as stainless steel or bearing steel.
Further Customization: QIBR can design and optimize bearings according to customer usage conditions and requirements.
QIBR - YAR 206-2RF/HV Insert Bearings Quality Control
Dimension measurement: Multiple high-precision instruments are used to measure various dimensions of the bearing, with an accuracy of up to 0.001mm.
Rotation accuracy: A micrometer measures small surface defects or deviations, with a measurement precision of up to 0.001mm.
Hardness measurement: A hardness tester measures the surface hardness of bearings, with a precision of ±0.5HRC.
Metallographic analysis: Professional metallographic microscopes analyze the internal metallographic structure of metals.
Geometric tolerance: A profile projector measures the geometric shape and relative position of the bearings.
Noise monitoring: Vibration meters monitor the vibration conditions during operation to obtain noise data.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits
Insert bearings are the optimized design of sealed deep groove ball bearings. This series bearings are easy to install and adjust, high load-bearing capacity, easy to maintain. Common application areas include agricultural machinery, food processing equipment, logistics transportation equipment,textile machinery, etc.
