SA205-16

Inner diameter:
1 inch
Outer diameter:
2.0472 inch
Width:
1.22 inch
Mass:
0.20 kg

We will provide you with the most suitable solution.

SA205-16

Image may differ from product. See technical specification for details.

Specifications

Seris - SA205-16

Brand : QIBR
Rolling element type : Ball
Measurement system : Metric
Precision level : P0(ABEC-1)
Vibration grade : Z1
Bore : 1 inch
Outer diameter (D) : 2.0472 inch
Overall bearing width (B1) : 1.22 inch
Width inner ring (B) : 0.8465 inch
Width of outer ring (C) : 0.5906 inch
Rolling element axial position (S) : 0.295 inch
Set screw size (ds) : 1/4-28 UNF
Set screw axial position (G) : 0.189 inch
Width of of locking collar (B5) : 0.531 inch
Outside diameter of lock (d3) : 1.5 inch
Basic dynamic load rating : 14000 N
Basic static load rating : 7850 N
Mass : 0.20 kg
Temperature : -30 ℃ to +110 ℃
Seal type : Closed Type
SA205-16

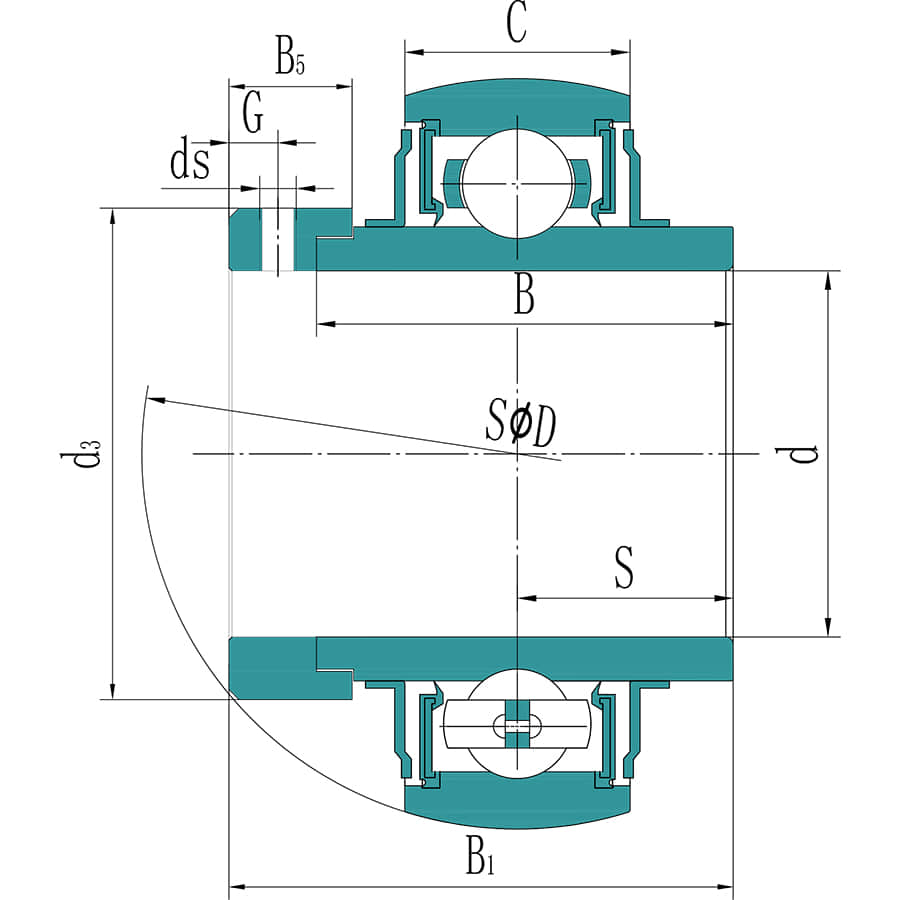

Download SA205-16 Drawing

Description

Bore, Outer diameter (D), Overall bearing width (B1), Width inner ring (B), Width of outer ring (C), Rolling element axial position (S), Set screw size (ds), Set screw axial position (G), Width of of locking collar (B5), Outside diameter of lock (d3), Basic dynamic load rating , Basic static load rating, Mass,

QIBR - SA205-16 Insert Bearings Advantages and Applications

SA205-16Insert Bearings, small friction coefficient, improved efficiency, Bore is 1 inch , Outer diameter (D) is 2.0472 inch , Mass is 0.20 kg, suitable for cranes, looms and excavators, etc., and is the most widely used bearing in working conditions with high performance requirements.

Bore, Outer diameter (D), Overall bearing width (B1), Width inner ring (B), Width of outer ring (C), Rolling element axial position (S), Set screw size (ds), Set screw axial position (G), Width of of locking collar (B5), Outside diameter of lock (d3), Basic dynamic load rating , Basic static load rating, Mass,

QIBR - SA205-16 Insert Bearings Characteristics

SA205-16Insert Bearings, easy to install and maintain, low production cost. SA205-16Insert Bearings, can withstand large radial load and small axial load, suitable for mechanical equipment with high efficiency requirements.

SA205-16 Insert Bearings Features and Advantages

Modular Design: The modular design facilitates direct installation and replacement, enhancing the operational efficiency of equipment.

Strong Adaptability: Insert bearings can handle both radial and axial loads, demonstrating significant capability to accommodate misalignment.

Multiple Locking Mechanisms: These bearings feature various locking mechanisms to meet different installation requirements.·

Cost-Effectiveness: By optimizing the efficiency of rotating components, insert bearings reduce maintenance and replacement frequency, lowering operational costs.

Application: They are widely used in sectors such as agricultural machinery, automotive manufacturing, railway industry, mining and metallurgy, food processing equipment, logistics transport equipment, and textile machinery.

QIBR - SA205-16 Insert Bearings Optimization

Process Optimization: Processing parameters like cutting speed and feed rate are optimized based on customer requirements for bearing performance.

High-Performance Materials: Bearing materials can be replaced according to different working conditions, such as stainless steel or bearing steel.

Further Customization: QIBR can design and optimize bearings according to customer usage conditions and requirements.

QIBR - SA205-16 Insert Bearings Quality Control

Dimension measurement: Multiple high-precision instruments are used to measure various dimensions of the bearing, with an accuracy of up to 0.001mm.

Rotation accuracy: A micrometer measures small surface defects or deviations, with a measurement precision of up to 0.001mm.

Hardness measurement: A hardness tester measures the surface hardness of bearings, with a precision of ±0.5HRC.

Metallographic analysis: Professional metallographic microscopes analyze the internal metallographic structure of metals.

Geometric tolerance: A profile projector measures the geometric shape and relative position of the bearings.

Noise monitoring: Vibration meters monitor the vibration conditions during operation to obtain noise data.

Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.

Features & Benefits

Insert bearings are the optimized design of sealed deep groove ball bearings. This series bearings are easy to install and adjust, high load-bearing capacity, easy to maintain. Common application areas include agricultural machinery, food processing equipment, logistics transportation equipment,textile machinery, etc.
SA205-16

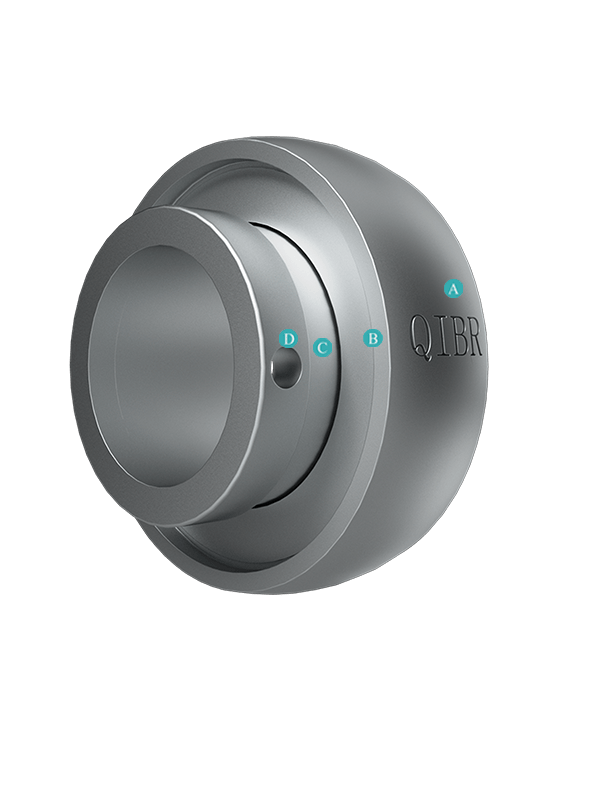

The outer ring of insert bearings is designed with a spherical surface to facilitate easy mounting and alignment within the housing.
The seal of insert bearings protects against contaminants and retains lubrication for reliable performance and extended bearing life.
The inner ring of insert bearings is extended on one or both sides, allowing secure attachment to the shaft with set screws or an eccentric locking collar.
The eccentric locking collar of insert bearings provides a secure and reliable locking mechanism by rotating and tightening against the shaft.
