ZA-30BWD01A-A-CA8-01
- Inner diameter:
- 30 mm
- Outer diameter:
- 63 mm
- Width:
- 42 mm
- Mass:
- 0.580 Kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - ZA-30BWD01A-A-CA8-01
Description
QIBR - ZA-30BWD01A-A-CA8-01 Hub Bearing Advantages and Applications

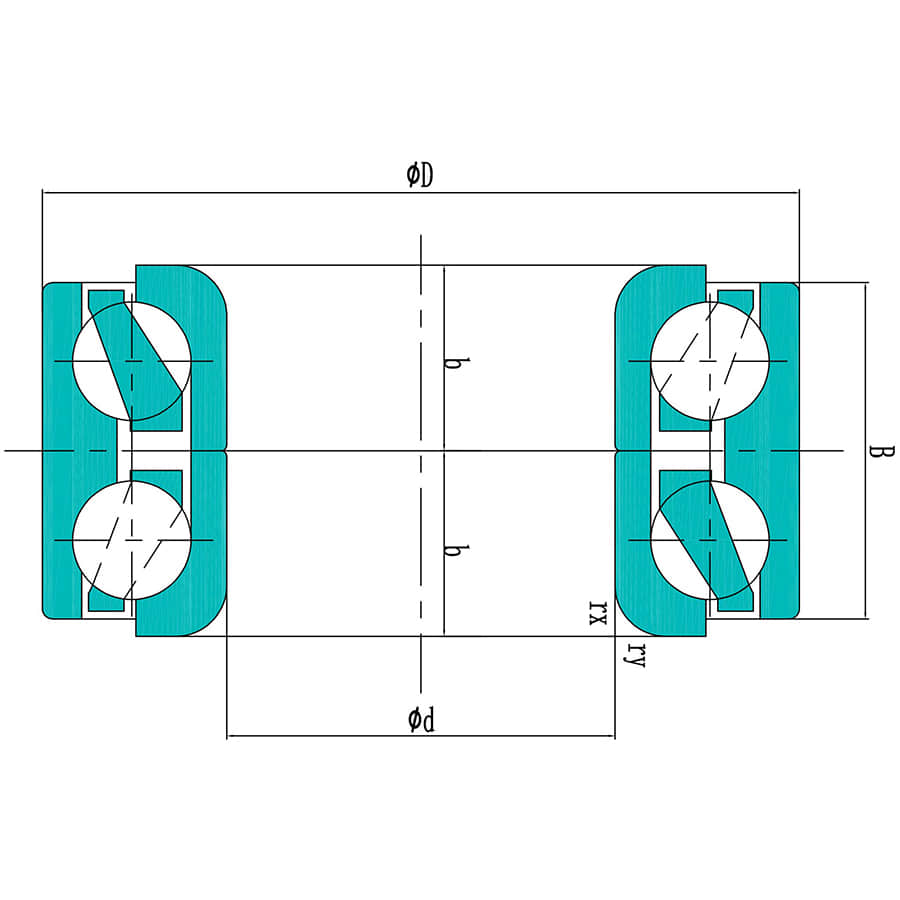

ZA-30BWD01A-A-CA8-01 Hub Bearing, integrated design, high load-bearing capacity, Inner diameter (d) is 30 mm, Outer diameter (D) is 63 mm, Width of outer ring (B) is 42 mm, Mass is 0.58 kg, suitable for passenger car wheel systems, motorcycle wheel systems and truck wheel systems, etc., and is the most widely used bearing in working conditions with high load-bearing capacity requirements.
QIBR - ZA-30BWD01A-A-CA8-01 Hub Bearing Characteristics
ZA-30BWD01A-A-CA8-01 Hub Bearing, long life, high reliability. ZA-30BWD01A-A-CA8-01 Hub Bearing, can bear radial load and certain axial load at the same time, suitable for mechanical equipment with high stability requirements.
ZA-30BWD01A-A-CA8-01 Hub Bearings Features and Advantages
High load capacity: Capable of withstanding significant radial and axial loads, accommodating the needs of various vehicles.
Integrated Design: Combines multiple components into a single unit, simplifying the installation process and reducing the number of parts.
Stability: Provides better wheel stability and handling, reducing vehicle shake and drift during operation.
Strong Adaptability: Exhibits good wear resistance and corrosion resistance, ensuring stable performance even in harsh environments.
Application: Widely used in passenger cars, commercial vehicles, power systems, drive systems, and hubs.
QIBR - ZA-30BWD01A-A-CA8-01 Hub Bearing Optimization
Seal Materials: Sealing structures can be selected based on the working environment of the bearings, such as 304 stainless steel (corrosion-resistant), hydrogenated nitrile rubber seals (low-temperature resistant), nylon (good elasticity), etc.
High-Performance Materials: The inner and outer flanges can be made of spring steel 65Mn or 55# based on customer requirements.
Grease Selection: Lubricants can be chosen according to customer needs and bearing operating conditions, such as Shell ET2/RN8, Mobilgrease XHP 222, Kunlun HP-R, etc.
More customization: QIBR can design and optimize the bearing according to customer requirements for drawings and bearing working conditions.
QIBR - ZA-30BWD01A-A-CA8-01 Hub bearing quality control
Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, achieving a maximum precision of 0.001mm.
Rotation accuracy: Small surface defects or deviations are measured with a micrometer, with a measurement precision of up to 0.001mm.
Hardness measurement: Use a hardness tester to measure the surface hardness of the bearing, with a measurement accuracy of up to ±0.5HRC.
Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.
Clearance Measurement: Axial clearance of the bearing is measured using a specialized hub axial clearance measuring instrument.
Noise monitoring: Vibration during operation is monitored with a vibration meter, yielding noise data below 60dB.
Sampling Inspection: A sample size of no less than 1% is taken based on the batch of bearings, with an acceptable defect rate of less than 2%.
Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.
Features & Benefits
The primary purpose of the hub bearing is to bear weight and provide precise guidance for the rotation of the hub.
