SWSC2SS227A

Outer diameter:: 30.73 mm

Width:: 11.13 mm

Mass:: 56 g

We will provide you with the most suitable solution.

Image may differ from product. See technical specification for details.

Brand : QIBR

Rolling element type : Ball

Measurement system : Metric

Outer diameter (D) : 30.73 mm

Width (B) : 11.13 mm

Mounting hex (H) : 14.29 mm

Weight : 56 g

Load rating, axial : 117 lbf

Load rating, radial : 494 lbf

Temperature : -22 °F to +500 °F

Seal type : Closed Type

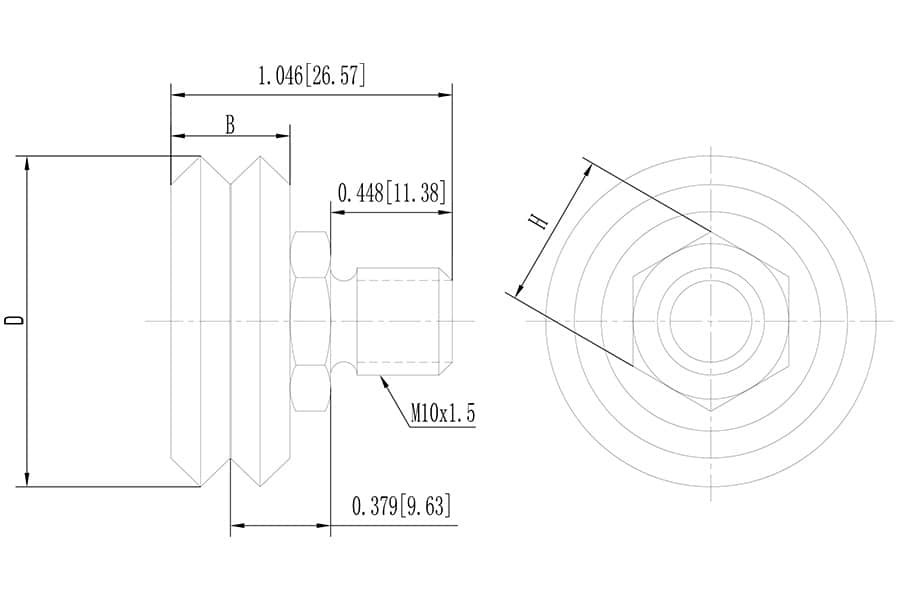

Download SWSC2SS227A Drawing

QIBR - SWSC2SS227A Guide Wheels Advantages and Applications

SWSC2SS227A Guide Wheels, compact structure, strong wear resistance, strong load-bearing capacity, Outer diameter (D) is 30.73 mm, Width (B) is 11.13 mm, Weight is 56 g, suitable for automated production lines, engineering machinery and precision instruments, etc., and is the most widely used in working conditions with high load-bearing capacity requirements.

QIBR - SWSC2SS227A Guide Wheels Characteristics

SWSC2SS227A Guide Wheels, strong adaptability, improved efficiency, long life. SWSC2SS227A Guide Wheels, can withstand radial load and axial load, suitable for mechanical equipment with high safety requirements.

Features & Benefits

A guide wheel is a circular device that directs or alters the movement of belts, chains, and other mechanical drives. It is often found in systems like conveyors and engines, where it helps minimize friction, ensure smooth operation, and maintain the drive mechanism's efficiency.

A. Outer Ring

The outer ring provides support and guidance, ensuring the balls roll on the correct path.

B. Ball

The balls reduce friction, bear loads, and enable smooth rotation.

C. Cage

The cage maintains ball spacing, prevents collisions, and ensures even load distribution.

D. Inner Ring

The inner ring fits with the shaft, transfers loads, and ensures stable rotation.
