S313

Part number: S313

Pitch (DP): 3

Number of teeth (z): 13

We will provide you with the most suitable solution.

Image may differ from product. See technical specification for details.

Brand : QIBR

Part number : S313

Pitch (DP) : 3

Number of teeth (z) : 13

Pressure angle : 14 1/2 °

Pitch diameter : 4.333 inch

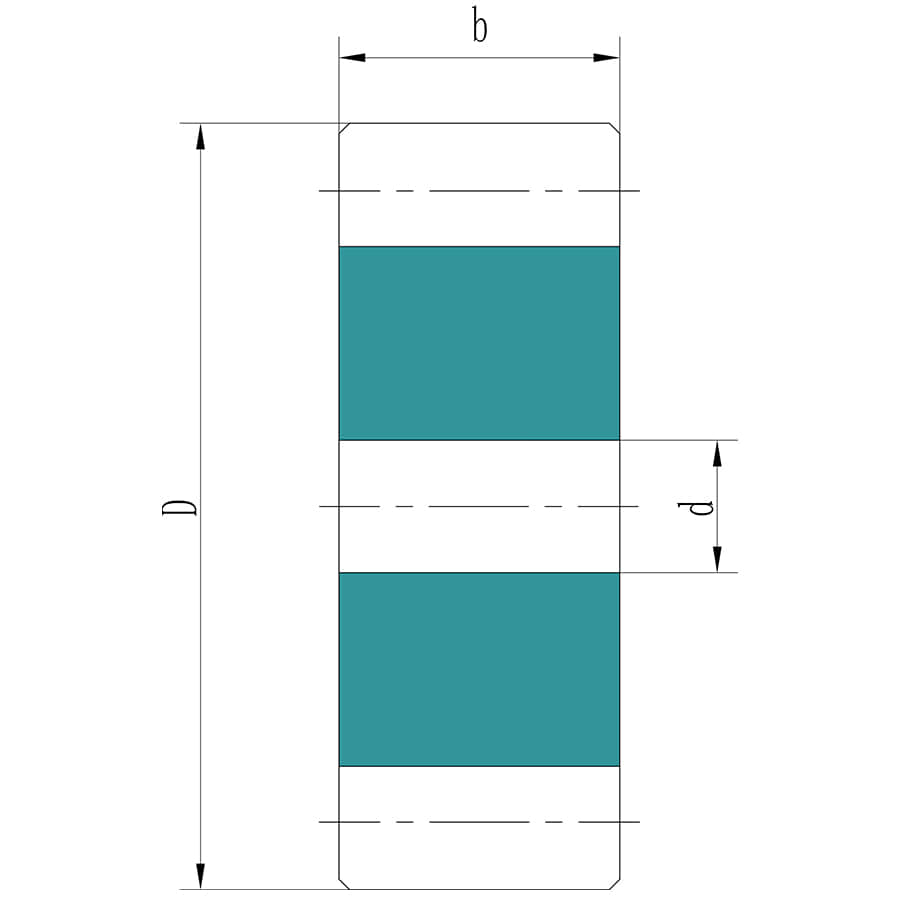

Outer diameter (D) : 5.000 inch

Inner diameter (d) : 1 5/16~2 1/4 inch

Gear tooth width (b) : 2 inch

Hub diameter (H) : -

Hub protract (P) : -

Weight : 10.70 lbs

Download S313 Drawing

QIBR - S313 Gears Advantages and Applications

S313 Gears, simple structure, high precision, high load-bearing capacity, Pitch (DP) is 3, Outer diameter (D) is 5.000 inch, Weight is 10.70 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

QIBR - S313 Gears Characteristics

S313 Gears, high reliability, long life, easy installation and maintenance. S313 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.

Features & Benefits

Gears are important components in mechanical transmission, transmitting power and motion through the meshing of teeth. Widely used in fields such as clocks, automobiles, industrial equipment, etc., it has the characteristics of precise transmission, high efficiency and stability.
