C648

Part number
C648
Pitch (DP)
6
Number of teeth (z)
48

We will provide you with the most suitable solution.

C648

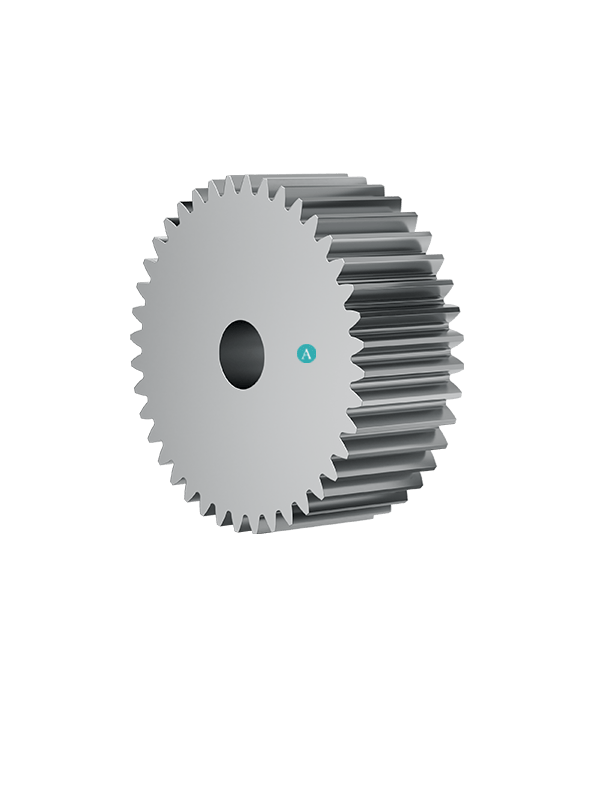

Image may differ from product. See technical specification for details.

Specifications

Seris - C648

Brand : QIBR
Part number : C648
Pitch (DP) : 6
Number of teeth (z) : 48
Pressure angle : 14 1/2 °
Pitch diameter : 8.000 inch
Outer diameter (D) : 8.333 inch
Inner diameter (d) : 1 1/8~1 13/16 inch
Gear tooth width (b) : 1 1/2 inch
Hub diameter (H) : 3 inch
Hub protract (P) : 1 inch
Weight : 12.10 lbs
C648
Download C648 Drawing

Description

Part number, Pitch (DP), Number of teeth (z), Pressure angle, Pitch diameter, Outer diameter (D), Inner diameter (d), Gear tooth width (b), Hub diameter (H), Hub protract (P), Weight,

QIBR - C648 Gears Advantages and Applications

C648 Gears, simple structure, high precision, high load-bearing capacity, Pitch (DP) is 6, Outer diameter (D) is 8.333 inch, Weight is 12.10 lbs. It is suitable for the transmission system of packaging machines, printing machines and medical equipment, etc. It is the most widely used in working conditions with high precision requirements.

Part number, Pitch (DP), Number of teeth (z), Pressure angle, Pitch diameter, Outer diameter (D), Inner diameter (d), Gear tooth width (b), Hub diameter (H), Hub protract (P), Weight,

QIBR - C648 Gears Characteristics

C648 Gears, high reliability, long life, easy installation and maintenance. C648 Gears, can withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high precision requirements.

Features & Benefits

Gears are important components in mechanical transmission, transmitting power and motion through the meshing of teeth. Widely used in fields such as clocks, automobiles, industrial equipment, etc., it has the characteristics of precise transmission, high efficiency and stability.
