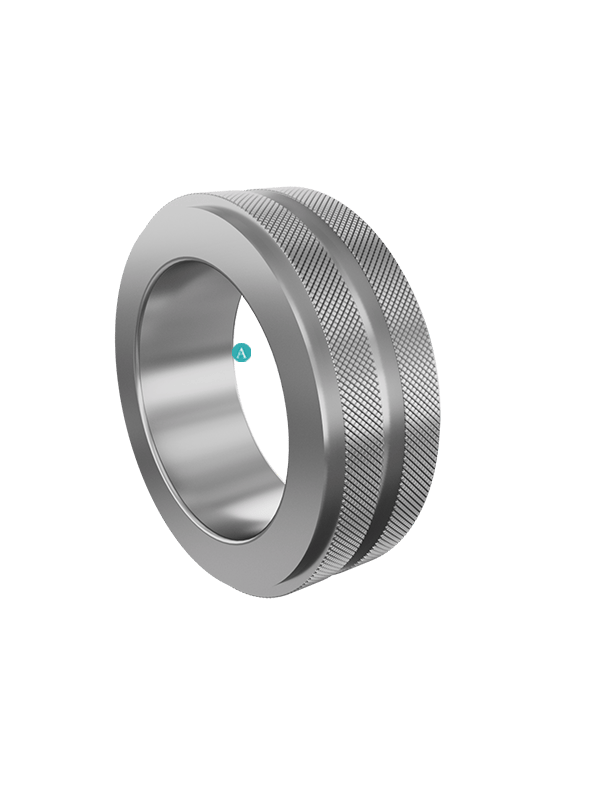

QGRA 3006

Inner diameter:
30 mm
Outer diameter:
52 mm
Width:
19 mm
Mass:
0.18 kg

We will provide you with the most suitable solution.

QGRA 3006

Image may differ from product. See technical specification for details.

Specifications

Seris - QGRA 3006

Brand : QIBR
Measurement system : Metric
Bearing model : NN 3006 KTN
Seat diameter (da) : 30.1 mm
Seat diameter (db) : 32 mm
Seat distance (Bb) : 6 mm
Seat distance (Bc) : 6.2 mm
Tolerance : ±0.1 mm
Seat distance (Bd) : 24 mm
Bore : 30 mm
Outside diameter (d1) : 52 mm
Width (B) : 19 mm
Mass : 0.18 kg
QGRA 3006
Download QGRA 3006 Drawing

Description

Bearing model, Seat diameter (da), Seat diameter (db), Seat distance (Bb), Seat distance (Bc), Tolerance, Seat distance (Bd), Bore, Outside diameter (d1), Width (B), Mass,

QIBR - QGRA 3006 Gauges Advantages and Applications

QGRA 3006 Gauges, accurate measurement, corrosion resistance, Bore is 30 mm, Outside diameter (d1) is 52 mm, Width (B) is 19 mm, Mass is 0.18 kg, suitable for measuring outer diameter, roundness, cylindricity and wear, etc., and is the most widely used gauge in working conditions with high precision requirements.

Bearing model, Seat diameter (da), Seat diameter (db), Seat distance (Bb), Seat distance (Bc), Tolerance, Seat distance (Bd), Bore, Outside diameter (d1), Width (B), Mass,

QIBR - QGRA 3006 Gauges Characteristics

QGRA 3006 Gauges, strong heat resistance, high cost performance. QGRA 3006 Gauges, suitable for measurements with high precision requirements.

QGRA 3006 QGRA 30 Ring Gauge Characteristics and Advantages

High Precision: Utilizes advanced measurement technology, achieving a measurement accuracy of up to 0.001 mm.

Drop Prevention: The outer steel sleeve acts as a protective ring, preventing the gauge from breaking upon dropping.

User-Friendly: Designed to minimize slipping, allowing for hand operation, which enhances work efficiency. Dirt does not adhere to the instrument.

Good Repeatability: Multiple measurements of the same bearing inner ring yield consistent results, demonstrating high repeatability.

Application: Widely used in the manufacturing, maintenance, and quality inspection of cylindrical parts.

QIBR - QGRA 3006 QGRA 30 Ring Gauge Optimization

High-performance materials: Different materials can be selected based on customer needs, such as tungsten steel, ceramics, or steel.

Accuracy: Precision grades can be chosen based on the operational conditions of the workpiece, such as 6g, 6h, 6f, 8g grades, etc.

More customization: QIBR can design and optimize bearings according to customer needs and operating conditions.

QIBR - QGRA 3006 QGRA 30 Ring Gauge Quality Control

Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the QGRA30 ring gauge, achieving a maximum precision of 0.001 mm.

Hardness measurement: The surface hardness of the QGRA30 ring gauge is measured using a hardness tester, with a measurement precision of ±0.5HRC.

Metallographic Analysis: The internal metallographic structure of the metal is analyzed using a professional metallographic microscope.

Raw material control: Procurement of steel and parts from ISO 14001 certified suppliers ensures product stability while promoting sustainable development.

Features & Benefits

It is developed as an assortment of gauges specially designed to take theaccurate measurements necessary whenmounting cylindrical roller bearings with atapered bore.
QGRA 3006
QGRA 30 ring gauges are a tool for precision measurement of bearings and mechanical components, typically used for high-accuracy inspection of cylindrical roller bearings.
