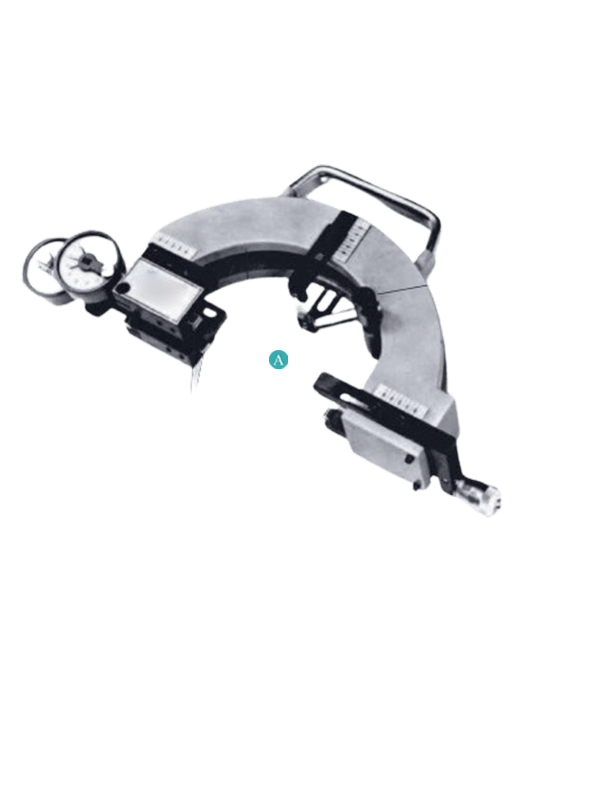

QDMB 24/28

Inner diameter:
240 mm
Outer diameter:
540 mm
Width:
99 mm
Mass:
7.0 kg

We will provide you with the most suitable solution.

QDMB 24/28

Image may differ from product. See technical specification for details.

Specifications

Seris - QDMB 24/28

Brand : QIBR
Measurement system : Metric
Taper MIN diameter (d) : 240 mm
Taper MAX diameter (d) : 280 mm
Width (A) : 99 mm
Distance (A1) : 75 mm
Distance (A2) : 89 mm
Height (H) : 240 mm
Length (L) : 540 mm
Mass : 7.0 kg
QDMB 24/28
Download QDMB 24/28 Drawing

Description

Taper MIN diameter (d), Taper MAX diameter (d), Width (A), Distance (A1), Distance (A2), Height (H), Length (L), Mass,

QIBR - QDMB 24/28 Gauges Advantages and Applications

QDMB 24/28 Gauges, high precision, easy to use, Taper MIN diameter (d) is 240 mm, Taper MAX diameter (d) is 280 mm, Width (A) is 99 mm, Mass is 7.0 kg, suitable for measuring inner taper angle, outer taper angle, taper ratio, taper fit accuracy, diameter of tapered workpiece and length of tapered workpiece, etc. It is the most widely used gauge in working conditions with high precision requirements.

Taper MIN diameter (d), Taper MAX diameter (d), Width (A), Distance (A1), Distance (A2), Height (H), Length (L), Mass,

QIBR - QDMB 24/28 Gauges Characteristics

QDMB 24/28 Gauges, high reliability, easy maintenance. QDMB 24/28 Gauges, suitable for measurements with high precision requirements.

Features & Benefits

It is developed as an assortment of gauges specially designed to take theaccurate measurements necessary whenmounting cylindrical roller bearings with atapered bore.
QDMB 24/28
QDMB taper gauges are tools for precision measurement of bearings and mechanical components. They are typically used to measure tapered outer diameters and angles.
