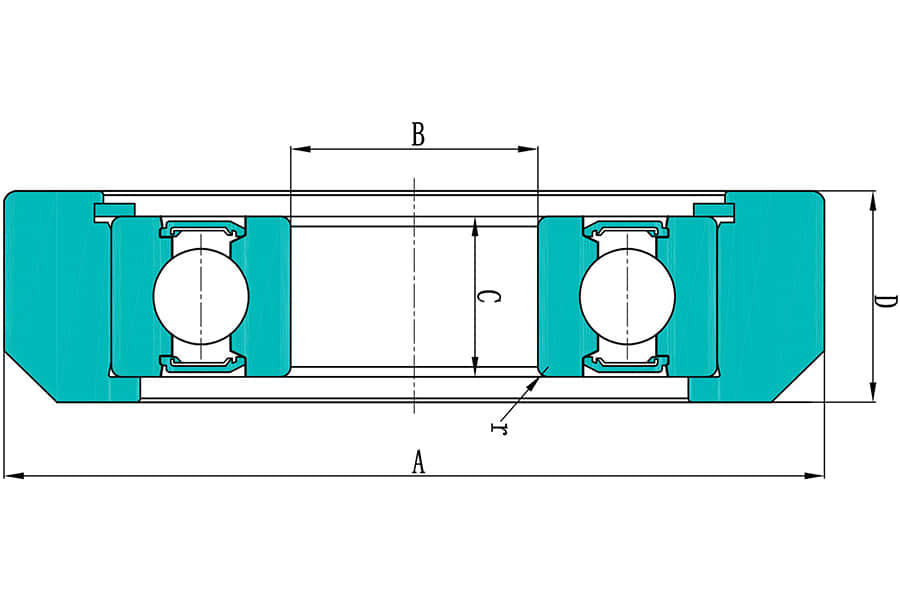

MG-307-FFQ
- Inner diameter:
- 1.3780 inch
- Outer diameter:
- 4.4900 inch
- Width:
- 1.2550 inch
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - MG-307-FFQ
Description
QIBR - MG-307-FFQ Forklift Roller Bearings Advantages and Applications
MG-307-FFQ Forklift Roller Bearings, high rigidity, high load-bearing capacity, Bore is 1.3780 inch, Outer diameter (D) is 4.4900 inch, Outer ring (W1) is 1.2550 inch, suitable for shelves, conveyor belts and door frame rollers, etc., and is the most widely used bearing in working conditions with high load-bearing capacity requirements.
QIBR - MG-307-FFQ Forklift Roller Bearings Characteristics
MG-307-FFQ Forklift Roller Bearings, high reliability, long life. MG-307-FFQ Forklift Roller Bearings, can simultaneously withstand radial load, certain axial load and overturning moment, suitable for mechanical equipment with high durability requirements.
MG-307-FFQ Forklift Roller Bearings Features and Advantages
High load capacity: With a special structural design and heat treatment process, these bearings can withstand radial and axial loads of up to several tons.
Guiding Function: They facilitate lifting, extension, and rotation actions, ensuring that forklifts can smoothly complete various operational tasks.
Optimized Operation: These bearings reduce noise and vibration during operation, enhancing driver comfort and promoting increased work efficiency.
Wear Resistance: Made from high-strength materials and advanced manufacturing processes, they exhibit excellent wear resistance, extending the service life of the bearings.
Impact Resistance: They possess certain impact and vibration resistance, allowing stable operation even in complex working environments.
Application: Forklift roller bearings are widely used in logistics and warehousing, industrial vehicles, construction, agriculture, and other fields.
QIBR - MG-307-FFQ Forklift Roller Bearings Optimization
High-Performance Materials: Bearing materials are replaced based on different working conditions, such as GCr15, GCr15SiMn, and SUJ2.
Surface Heat Treatment: Heat treatments like carburizing, nitriding, and chrome plating are employed to enhance surface hardness and wear resistance.
Sealing Structure: Sealing structures are selected based on the working environment of the bearings, such as FKM seals for high temperatures, HNBR seals for low temperatures, and PTFE seals for corrosion resistance.
More customization: QIBR can optimize and improve bearings according to customer drawings and operational requirements.
QIBR - MG-307-FFQ Forklift Roller Bearings Quality Control
Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearings, with maximum precision reaching 0.001mm.
Rotation accuracy: A dial indicator measures small defects or deviations on the bearing surface, achieving a measurement precision of 0.001mm.
Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: Internal metallographic structure is analyzed using a professional metallographic microscope.
Geometric tolerance: A contour gauge measures the bearing's geometric shape and relative position.
Noise monitoring: A vibration meter monitors vibration during operation to obtain noise data.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits

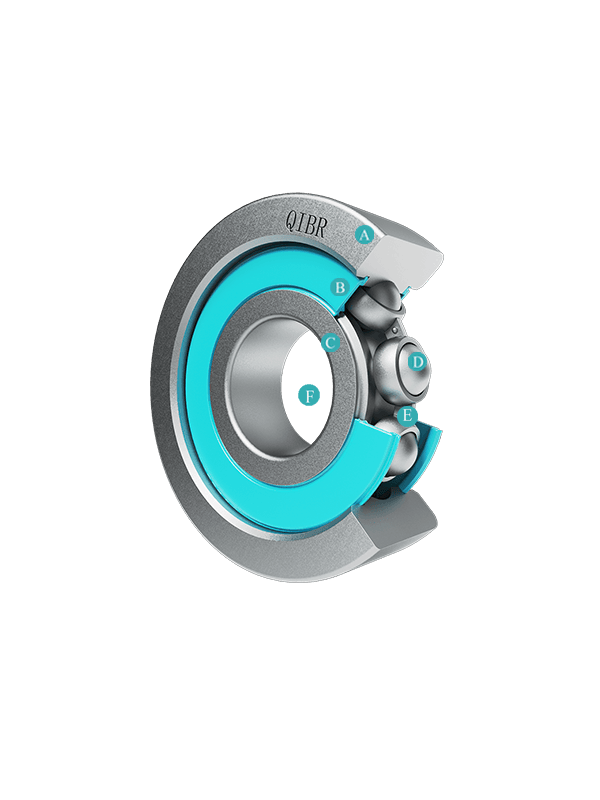

The internal design of forklift roller bearings and other varieties of track roller bearings maximizes load capacities to protect bearing components and applications from high radial and thrust loads. Tight seals and high grease-fills are used to ensure minimal wear and tear and the highest possible lifespan for the bearing components.
