NNF 5011 ADB-2LSV /P5

Inner diameter:
55 mm
Outer diameter:
90 mm
Width:
46 mm
Mass:
1.2 Kg

We will provide you with the most suitable solution.

NNF 5011 ADB-2LSV /P5

Image may differ from product. See technical specification for details.

Specifications

Seris - NNF 5011 ADB-2LSV /P5

Brand : QIBR
Rolling element type : Roller
Measurement system : Metric
Precision level : P5
Inner diameter (d) : 55 mm
Outer diameter (D) : 90 mm
Width (B) : 46 mm
Basic dynamic load rating : 45 KN
Basic dynamic load rating : 128 KN
Basic static load rating : 193 KN
Fatigue load limit (Pu) : 22.8 KN
Limiting speed : 1500 rpm
Mass : 1.2 kg
Shoulder diameter (d1) : 68.6 mm
Snap ring groove diameter at outer ring (D3) : 87.4 mm
Distance between two snap ring grooves of the outer ring outside surface : 40.2 mm
Distance outer ring side face-snap ring groove (sealed bearing C2) : 2.4 mm
Width snap ring groove outer ring (b) : 3.2 mm
Width annular lubrication groove outer ring (b1) : 8.5 mm
Diameter lubrication hole (outer ring) (K) : 4.5 mm
Chamfer dimension (r) : 1 mm
Chamfer dimension (r3,4) : 0.6 mm
Shaft abutment diameter (da) : 60 mm
Shaft abutment diameter (das) : 66.1 mm
Abutment width applying (Ca1) : 35 mm
Abutment width applying (Ca2) : 34 mm
Fillet radius (ra MAX) : 0.6 mm
MIN load factor (kr) : 0.4
Snap ring seeger : SW 90
Snap ring in accordance with DIN 471 : 90x3
Inner diameter tolerance : 0 to -9 µm
Inner ring width tolerance : 0 to -150 µm
Outer diameter tolerance : 0 to -10 µm
Outer ring width tolerance : 0 to -150 µm
Temperature : -30℃ to +110℃
NNF 5011 ADB-2LSV /P5

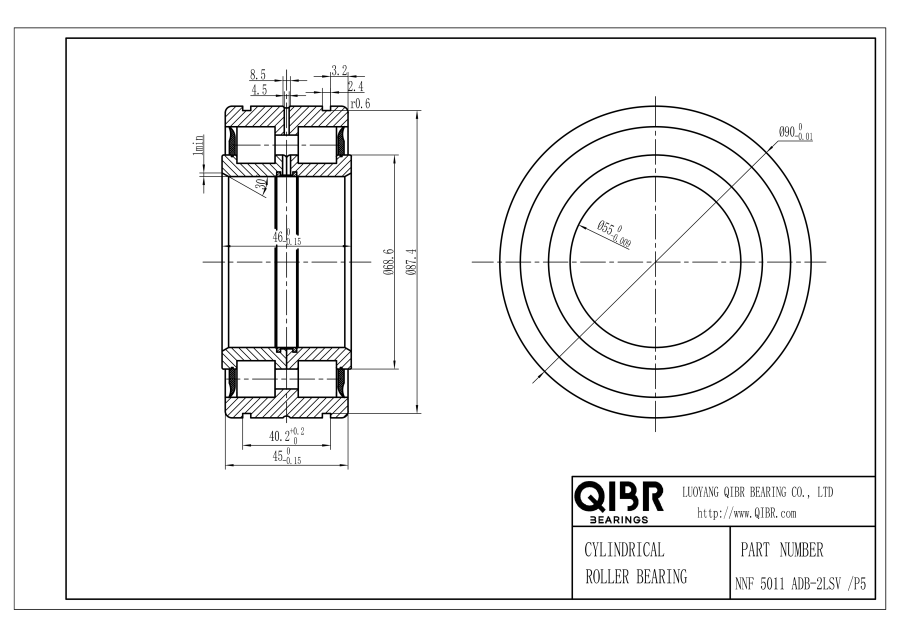

Download NNF 5011 ADB-2LSV /P5 Drawing

Description

Inner diameter (d), Outer diameter (D), Width (B), Basic dynamic load rating , Basic dynamic load rating , Basic static load rating, Fatigue load limit (Pu), Limiting speed , Mass, Shoulder diameter (d1), Snap ring groove diameter at outer ring (D3), Distance between two snap ring grooves of the outer ring outside surface, Distance outer ring side face-snap ring groove (sealed bearing C2), Width snap ring groove outer ring (b), Width annular lubrication groove outer ring (b1), Diameter lubrication hole (outer ring) (K), Chamfer dimension (r), Chamfer dimension (r3,4), Shaft abutment diameter (da), Shaft abutment diameter (das), Abutment width applying (Ca1), Abutment width applying (Ca2), Fillet radius (ra MAX), MIN load factor (kr), Snap ring seeger, Snap ring in accordance with DIN 471, Inner diameter tolerance, Inner ring width tolerance, Outer diameter tolerance, Outer ring width tolerance,

QIBR - NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing Advantages and Applications

NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing, high stability, high precision,Inner diameter (d) is 55 mm，Outer diameter (D) is 90 mm，Width (B) is 46 mm，Mass is 1.2 kg , suitable for locomotives, compressors and machine tool spindles, etc., and is the most widely used bearing in working conditions with high precision requirements.

Inner diameter (d), Outer diameter (D), Width (B), Basic dynamic load rating , Basic dynamic load rating , Basic static load rating, Fatigue load limit (Pu), Limiting speed , Mass, Shoulder diameter (d1), Snap ring groove diameter at outer ring (D3), Distance between two snap ring grooves of the outer ring outside surface, Distance outer ring side face-snap ring groove (sealed bearing C2), Width snap ring groove outer ring (b), Width annular lubrication groove outer ring (b1), Diameter lubrication hole (outer ring) (K), Chamfer dimension (r), Chamfer dimension (r3,4), Shaft abutment diameter (da), Shaft abutment diameter (das), Abutment width applying (Ca1), Abutment width applying (Ca2), Fillet radius (ra MAX), MIN load factor (kr), Snap ring seeger, Snap ring in accordance with DIN 471, Inner diameter tolerance, Inner ring width tolerance, Outer diameter tolerance, Outer ring width tolerance,

QIBR - NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing Characteristics

NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing, long life, low overall cost. NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing, can bear radial load and certain axial load at the same time, suitable for mechanical equipment with high precision requirements.

NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing Features and Advantages

High load capacity: Designed with a high radial load capacity, suitable for heavy loads and shock loads, making it ideal for high-load conditions.

Low Friction Coefficient: The line contact between the rollers and raceways results in a low friction coefficient, making it suitable for high-speed operation.

Separable Design: The inner and outer rings can be separated, facilitating easy installation and disassembly, ideal for equipment requiring frequent maintenance.

High Adaptability: Capable of accommodating changes in relative position due to thermal expansion or installation errors, suitable as a free-end bearing.

Application: Extensively used in the automotive industry, industrial machinery, motors and power generation equipment, household appliances, aerospace, medical equipment, railways and transportation, construction machinery, wind energy, and renewable resources.

QIBR - NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing Optimization

Selectable Precision, Vibration, and Noise Levels: Options include P6, P5 for precision, V2, V3 for vibration, and Z2, Z3 for noise.

Cage Material: The cage material can be chosen based on operating conditions, with options including steel, brass, or nylon.

Grease Replacement: Select lubrication according to bearing working requirements, such as SKF LGMT 2, Timken GR217, or Shell Gadus S2 V220AC.

Optimized Roller Profile: Depending on operating conditions, logarithmic profile curves can be used to optimize the roller profile, reducing stress concentration between rollers and raceways, and enhancing load capacity and service life.

More customization: QIBR can design and optimize bearings according to customer drawings and operating conditions.

QIBR - NNF 5011 ADB-2LSV /P5 Cylindrical Roller Bearing Quality Control

Dimension measurement: Various high-precision instruments are used to measure multiple dimensions of the bearing, with an accuracy of up to 0.001mm.

Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.

Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.

Metallographic analysis: Internal metallographic structure is analyzed using a professional metallographic microscope.

Geometric tolerance: A contour gauge measures the bearing's geometric shape and relative position.

Noise monitoring: A vibration meter monitors vibration during operation to obtain noise data.

Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.

Features & Benefits

Cylindrical roller bearings are widely used in various industries including the automotive sector, machine tool manufacturing, power generation, construction machinery, heavy equipment manufacturing, wind power generation, and aerospace, etc.
NNF 5011 ADB-2LSV /P5
The outer ring is made of high-purity special high-quality bearing steel processed by high-speed forging + cold rolling process, and the raceway surface is carbonitrided.
contact seal on both sides
Have a two-piece inner ring, held together by a retaining ring and with three integral flanges
Full Complement Rollers, enhancing load-carrying capability and promoting uniform stress distribution.
Grease lubrication
