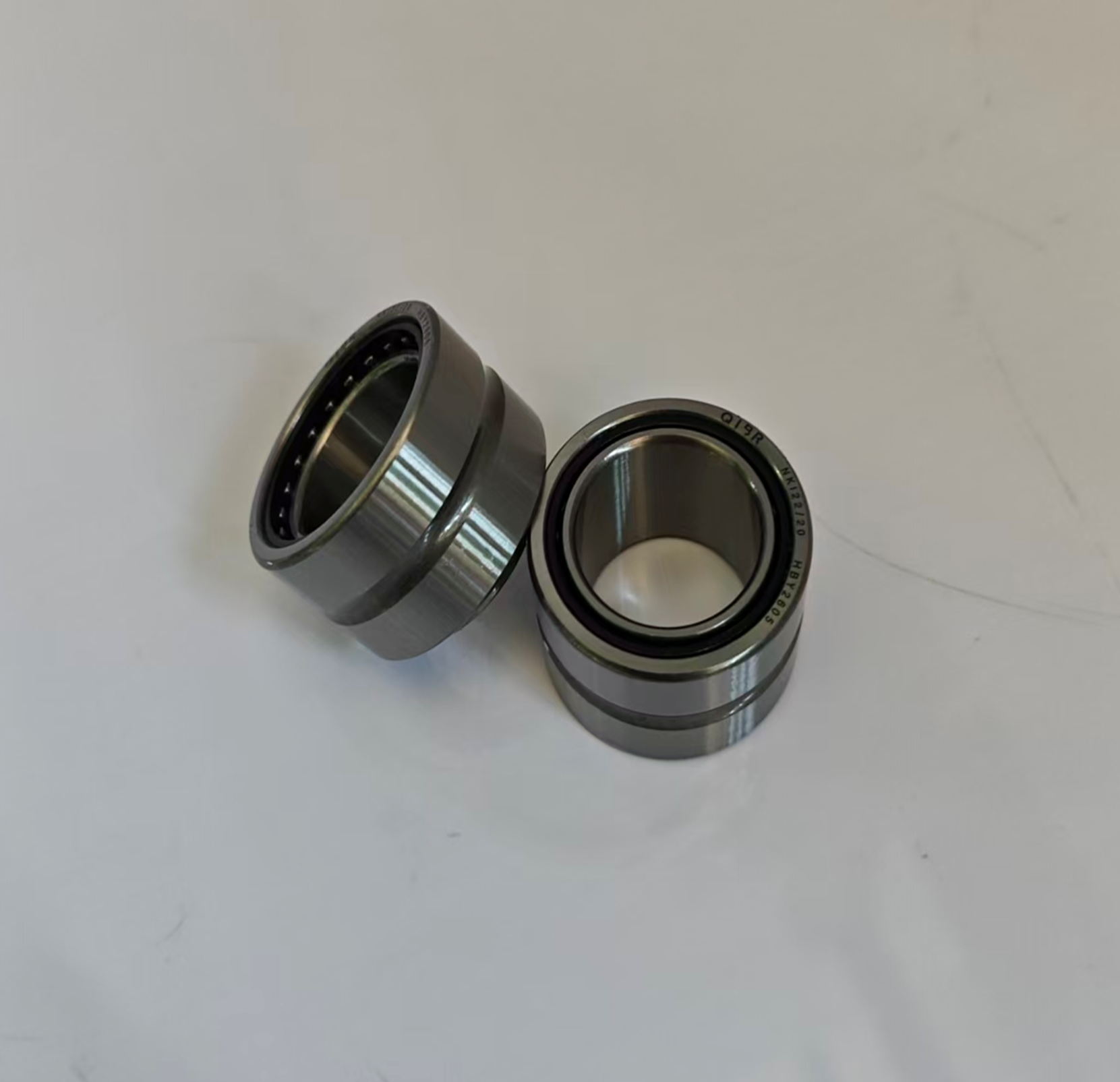

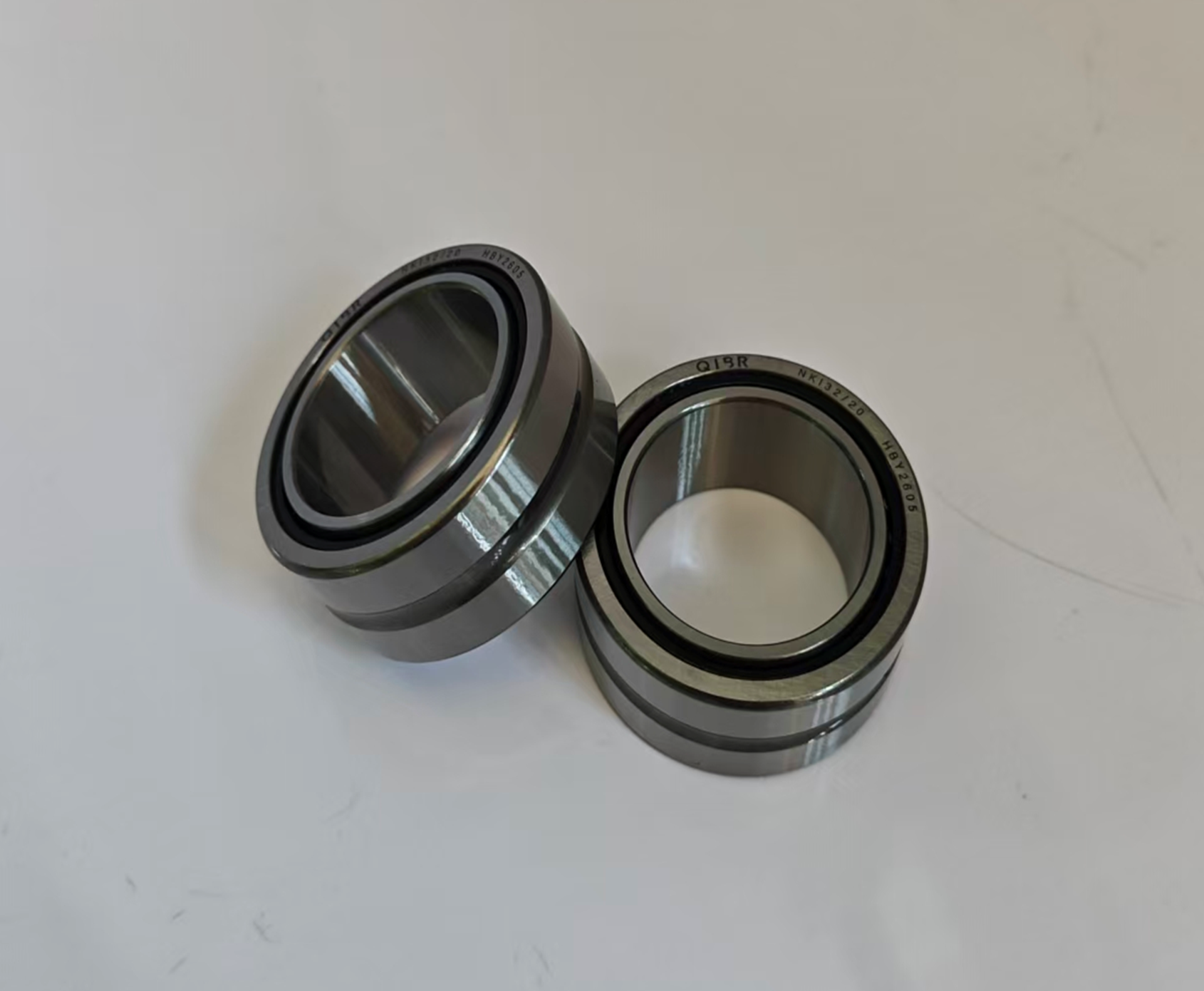

Why Choose Needle Roller Bearings With Machined Rings and an Inner Ring?

In many mechanical systems, engineers need bearings that can support high radial loads while operating within limited installation space. Needle Roller Bearings With Machined Rings With Flanges, With An Inner Ring provide a compact solution for these demanding applications.

With a large number of needle rollers, machined bearing rings, and an integrated inner ring, this bearing design combines high radial load capacity with a compact cross section.

What Makes This Bearing Design Different?

Needle roller bearings use long, slender rollers instead of balls. This allows the bearing to provide a relatively large load-carrying capacity while maintaining a compact radial design.

Compared with designs without an inner ring, bearings with an inner ring provide their own precision raceway surface. This can simplify shaft design and reduce the need for the shaft itself to be specially hardened and ground as a raceway.

The machined rings and flanges also help guide and retain the rolling elements, contributing to stable operation.

High Radial Load Capacity in a Compact Space

One of the main advantages of needle roller bearings is their ability to carry high radial loads without requiring a large radial installation space.

This makes them suitable for applications where equipment designers need to reduce component size while maintaining reliable load support.

Typical applications include:

• Gearboxes and transmission systems
• Automotive components
• Agricultural machinery
• Industrial machinery
• Automation equipment
• Construction equipment

Why Is the Inner Ring Important?

The inner ring provides a dedicated and accurately manufactured raceway for the needle rollers.

This can be particularly useful when:

• The shaft cannot be used directly as a bearing raceway
• The shaft material or surface hardness is not suitable
• A replaceable bearing raceway is required
• Consistent bearing running accuracy is important

Using an inner ring can therefore simplify the design of the shaft while providing a suitable rolling surface for the needle rollers.

How Do Flanges Improve Bearing Performance?

The flanges on the bearing rings help guide the needle rollers and maintain their correct position during operation.

This improves the stability of the rolling elements and helps the bearing operate reliably under radial loads.

The overall design is particularly suitable for applications requiring compact dimensions, stable rotation, and dependable load-carrying performance.

What Should Be Considered When Selecting This Bearing Type?

Before selecting a needle roller bearing with machined rings, flanges, and an inner ring, engineers should consider:

• Radial load
• Rotational speed
• Available installation space
• Shaft dimensions
• Lubrication conditions
• Operating temperature
• Required bearing life

Proper installation and lubrication are also important for achieving stable performance and long service life.

Conclusion

Needle Roller Bearings With Machined Rings With Flanges, With An Inner Ring are a practical solution for applications requiring high radial load capacity within a compact design.

Their needle roller arrangement provides efficient radial load support, while the machined rings, flanges, and inner ring contribute to stable operation and simplified shaft requirements.

For gearboxes, industrial machinery, agricultural equipment, and other compact mechanical systems, this bearing design offers an effective balance between load capacity, installation space, and reliable performance.
