The S07003CS0 Ultra-Slim Bearing: Precision, Durability, and Space Efficiency

In the realm of precision engineering, the demand for components that balance minimal size, high performance, and long-term reliability has never been greater. Among these critical components, ultra-slim bearings stand out as indispensable solutions for space-constrained applications. The S07003CS0—a metric radial contact (Type C) ultra-slim bearing—exemplifies this balance, combining an ultra-thin profile, stainless steel construction, and precise engineering to deliver exceptional performance in compact assemblies. As a flagship model in the constant-section bearing category, it has become a preferred choice for industries ranging from medical devices to robotics, where every millimeter of space and gram of weight matters.

Core Design and Dimensional Specifications

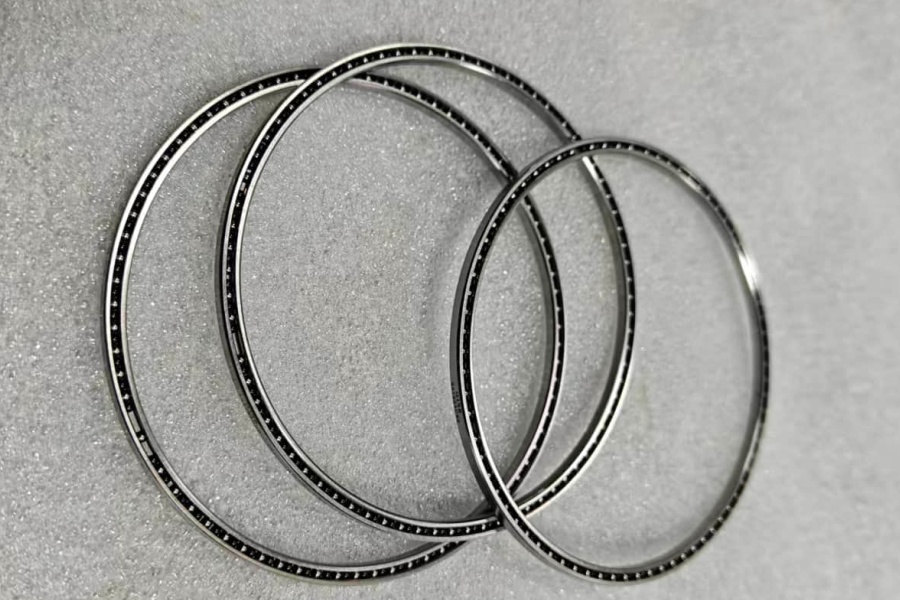

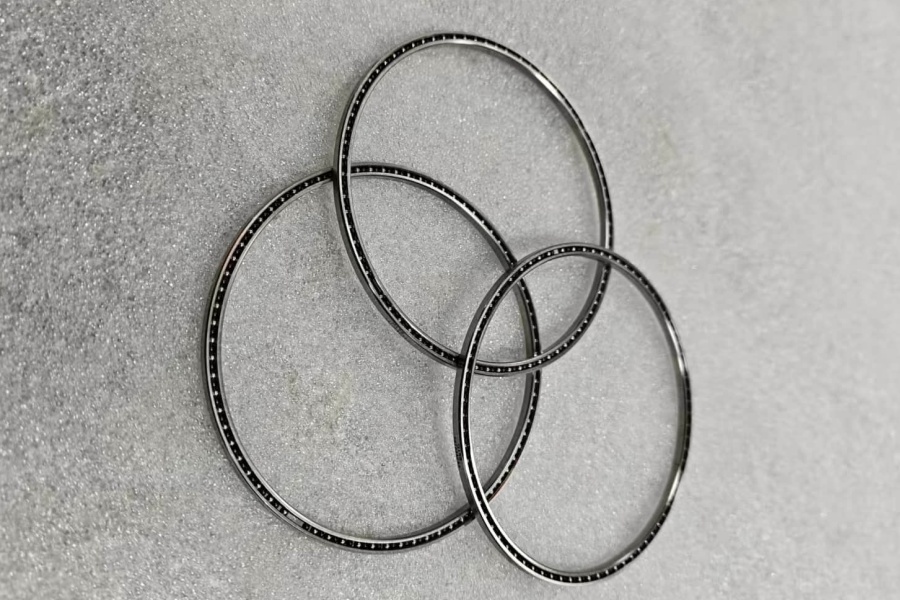

At the heart of the S07003CS0’s performance is its meticulously engineered ultra-slim geometry. Designed as a single-row, open-style ball bearing, it features a constant radial cross-section of just 3 mm, with a bore diameter of 70 mm, an outer diameter of 76 mm, and an extremely narrow width of 2.5 mm. This compact footprint—weighing only approximately 11 grams—enables radical miniaturization of assemblies without compromising structural integrity or load-bearing capacity.

Unlike standard bearings, which increase in cross-section as bore size grows, the S07003CS0 maintains a consistent 3 mm cross-section regardless of its 70 mm bore. This “constant-section” design is a hallmark of ultra-slim bearings, allowing engineers to standardize housing and shaft designs across different bore sizes, reducing manufacturing complexity and costs. The open design (no seals or shields) further optimizes space and weight, while facilitating lubrication and inspection—critical for applications where maintenance access is limited.

Material Construction: Unmatched Corrosion Resistance and Durability

The S07003CS0’s all-stainless steel construction sets it apart from conventional bearings, making it ideal for harsh environments where corrosion and chemical exposure are concerns. Every component—inner ring, outer ring, balls, and cage—is crafted from high-grade stainless steel, providing superior resistance to rust, moisture, and common industrial chemicals. This corrosion resistance is particularly valuable in wash-down environments (e.g., food processing equipment) or outdoor applications, where carbon steel bearings would quickly degrade.

Beyond corrosion protection, stainless steel offers exceptional hardness and wear resistance, ensuring long-term durability even under repeated cycling. The bearing’s balls, precision-ground to tight tolerances, minimize friction and wear, while the stainless steel cage maintains ball alignment and prevents contact between rolling elements—reducing noise and extending service life. This robust construction eliminates the need for frequent replacements, lowering maintenance costs and downtime for critical equipment.

Precision Engineering: ABEC-1 Tolerance for Smooth, Reliable Operation

Precision is non-negotiable in applications like medical imaging equipment, aerospace components, and robotic joints—and the S07003CS0 delivers with ABEC-1 precision class tolerances. ABEC (Annular Bearing Engineers Committee) ratings define the dimensional accuracy and rotational precision of bearings, with lower numbers indicating tighter tolerances. The ABEC-1 rating ensures minimal runout (wobble during rotation) and consistent bore diameter, enabling smooth, vibration-free operation at low to moderate speeds.

The bearing’s radial contact (Type C) design features a 0° contact angle, meaning it is optimized to handle pure radial loads (forces perpendicular to the shaft) with exceptional efficiency. It can support a dynamic radial load of up to 667 N (approximately 150 lbf) and a static radial load of 827 N, making it suitable for light-to-medium duty applications. While not designed for heavy axial (thrust) loads, it can accommodate minor axial forces, adding versatility to its performance profile.

Operational Versatility: Temperature Range and Lubrication

The S07003CS0 is engineered to perform reliably across a wide temperature spectrum, making it adaptable to diverse operating conditions. Pre-lubricated with high-quality grease at the factory, it operates seamlessly from -30°C to 110°C. This broad range covers extreme cold (e.g., cryogenic medical equipment) and moderate heat (e.g., industrial automation), eliminating the need for specialized lubricants in most applications.

The open design simplifies re-lubrication when needed, ensuring consistent performance over time. Its low-friction stainless steel construction reduces heat generation during operation, further enhancing stability in high-temperature environments. Whether in a chilled laboratory or a warm factory floor, the S07003CS0 maintains its precision and load capacity, delivering consistent results.

Key Applications: Where the S07003CS0 Shines

The S07003CS0’s unique combination of ultra-slim size, corrosion resistance, and precision makes it a go-to choice for space-constrained, high-reliability applications:

Medical Devices: Surgical robots, diagnostic imaging equipment, and lab analyzers require compact, sterile, and corrosion-resistant bearings. The S07003CS0’s stainless steel construction and small footprint fit perfectly, while its smooth rotation ensures precise, contamination-free operation.

Robotics and Automation: Robotic joints, linear actuators, and pick-and-place systems demand lightweight, low-profile components to minimize inertia and maximize efficiency. The S07003CS0’s 11-gram weight and thin design reduce stress on motors and enable faster, more accurate movements.

Aerospace and Defense: Avionics, satellite components, and missile guidance systems require bearings that withstand extreme temperatures, vibration, and corrosion. The S07003CS0’s rugged stainless steel build and ABEC-1 precision meet these stringent requirements.

Food and Beverage Processing: Wash-down environments with moisture and chemical exposure demand corrosion-resistant bearings. The S07003CS0’s all-stainless steel construction complies with hygiene standards, making it ideal for conveyor systems and packaging equipment.

Optical and Precision Instruments: Cameras, telescopes, and laser devices require minimal runout and vibration. The S07003CS0’s ABEC-1 tolerances ensure smooth rotation, preserving optical alignment and image quality.

Advantages Over Standard Bearings

Compared to standard deep-groove ball bearings or even thin-section bearings, the S07003CS0 offers distinct benefits:

Space and Weight Savings: Its 2.5 mm width and 3 mm cross-section reduce space requirements by up to 70% compared to standard bearings of the same bore size, while its 11-gram weight minimizes inertia.

Corrosion Resistance: All-stainless steel construction outperforms carbon steel bearings in harsh environments, extending service life by 2–3 times.

Precision: ABEC-1 tolerances deliver smoother, more consistent rotation than standard commercial bearings, critical for precision applications.

Cost Efficiency: Standardized constant-section design reduces housing/shaft manufacturing costs, while durability lowers maintenance expenses.

Conclusion

The S07003CS0 ultra-slim bearing is more than just a component—it is a testament to precision engineering that prioritizes efficiency, durability, and reliability. Its ultra-thin profile, stainless steel construction, ABEC-1 precision, and versatile performance make it an indispensable solution for modern applications where space is at a premium and failure is not an option. From medical devices to robotics, aerospace to food processing, the S07003CS0 continues to enable innovation by delivering consistent, long-lasting performance in the most demanding environments. As industries evolve toward smaller, lighter, and more precise equipment, this remarkable bearing will remain a cornerstone of modern engineering design.
