An In-depth Analysis of the KF070XP0 Thin-Section Four-Point Contact Bearing

In the precision machinery and industrial automation industry, thin-section bearings are indispensable core components for realizing compact equipment design, high-precision operation and lightweight structural optimization. Among numerous high-precision bearing models, the KF070XP0 stands out as a classic four-point contact thin-section ball bearing, widely recognized for its ultra-compact structure, multi-load bearing capacity and stable high-precision operation performance. As a representative product of the Reali-Slim thin-section bearing series, this bearing breaks the structural limitations of traditional bearings, effectively solves the space occupation and weight excess problems of conventional bearing parts, and has become a preferred component in high-end precision equipment across various industries.

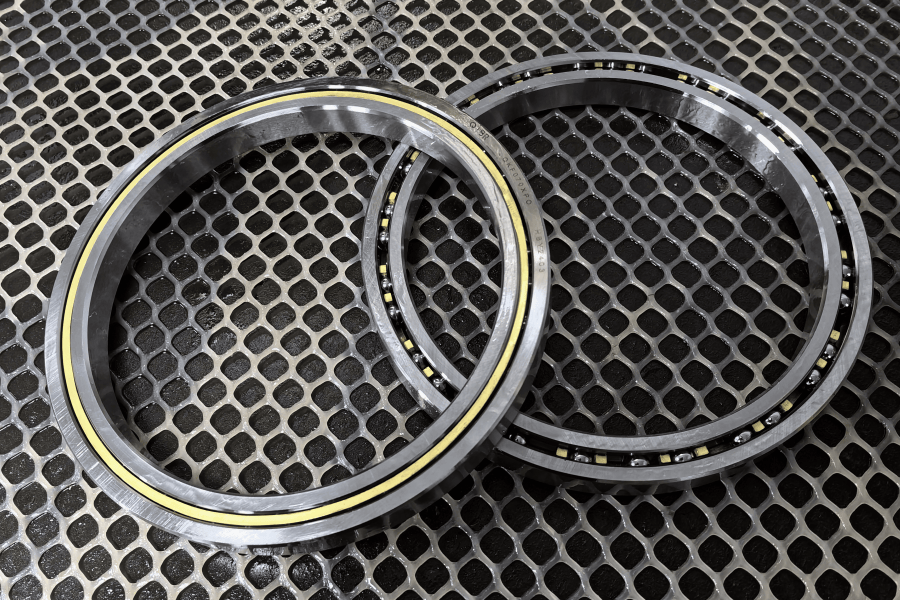

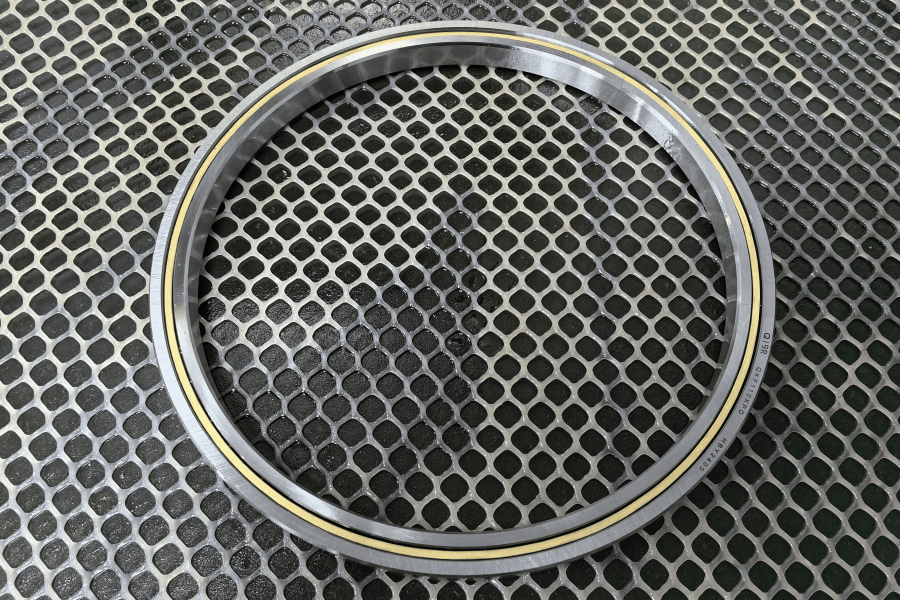

The KF070XP0 is a standard open-type single-row four-point contact ball bearing, adhering to the inch-based dimensional design specifications commonly used in high-precision mechanical manufacturing. Its core dimensional parameters are standardized and precise, with a bore diameter of 7 inches (177.8 mm), an outer diameter of 8.5 inches (215.9 mm), and a section width of 0.75 inches (19.05 mm). The ultra-thin and uniform cross-section is the most intuitive structural feature of this bearing. Different from ordinary ball bearings with thick and unequal sections, the KF070XP0 maintains an extremely slim and consistent wall thickness, which greatly reduces the overall structural volume of the bearing assembly. Meanwhile, its lightweight design with a net weight of only 1.45 kilograms effectively lowers the overall load and rotational inertia of the equipment, laying a solid foundation for high-speed and flexible operation of precision machinery.

The core design highlight of the KF070XP0 bearing lies in its four-point contact internal structure, which fundamentally differentiates it from traditional two-point contact angular contact ball bearings. The unique raceway curvature design enables a single bearing to simultaneously bear radial load, bidirectional axial load and overturning moment load, realizing multi-directional integrated load bearing. In contrast, conventional angular contact bearings often require two sets of matching installations to withstand composite loads, which not only occupies more axial installation space but also increases assembly complexity and equipment weight. The KF070XP0 perfectly avoids these drawbacks. It requires only a single bearing to complete the composite load support function, saving nearly half of the axial installation space and significantly simplifying the mechanical structure design.

In terms of precision and manufacturing standards, the KF070XP0 belongs to the high-precision P0 grade (ABEC 1F precision class), meeting the strict dimensional tolerance and rotational accuracy requirements of high-end precision equipment. The bearing ring adopts integral forming process with smooth and uniform raceway surface, which effectively reduces friction resistance during operation. Equipped with a standard brass formed cage, the bearing balls are evenly spaced and stably guided, avoiding ball friction and collision during high-speed rotation. This structural configuration endows the bearing with excellent low-friction operation characteristics, stable rotational speed and minimal running noise. In addition, the standard normal internal radial clearance (Cn grade) ensures that the bearing can adapt to conventional working conditions, achieving a balance between installation convenience and operational stability.

The performance advantages of KF070XP0 are fully reflected in actual industrial operation scenarios. Firstly, it features high structural rigidity and strong anti-deformation ability. Even under the combined action of radial, axial and moment loads, the bearing can maintain stable structural accuracy without obvious deformation or displacement, ensuring the long-term positioning accuracy of mechanical components. Secondly, its thin-section lightweight design optimizes the dynamic performance of equipment, especially suitable for rotating and swinging mechanisms that require sensitive response and low inertia. Thirdly, the open-type structure facilitates grease injection and daily maintenance, and the excellent material processing technology gives the bearing good wear resistance and structural stability, with a stable working temperature up to 120°C, meeting the temperature requirements of most conventional industrial working conditions.

Thanks to its superior comprehensive performance, the KF070XP0 bearing has a wide range of application scenarios, covering multiple high-precision manufacturing fields. In the field of industrial automation, it is widely used in precision rotary tables, robotic joint rotating mechanisms, and automated positioning platforms, providing stable and high-precision rotation support for flexible automation equipment. In the aerospace and precision instrumentation industry, its lightweight and high-precision characteristics make it suitable for precision sensor rotating components and aerospace auxiliary mechanical structures, effectively reducing equipment weight while ensuring operational accuracy. In addition, it is also applied in medical precision equipment, optical detection instruments and high-end packaging machinery, serving as a core rotating component to guarantee the precise and stable operation of high-end equipment.

In terms of installation and maintenance, the KF070XP0 has strong practicability and compatibility. The standard snap-over formed ring structure simplifies the installation and disassembly process, reducing the technical threshold of assembly operation. The open-type design without sealing structure enables operators to directly observe the internal operation state of the bearing, timely check grease deterioration and component wear, and carry out cleaning and lubrication maintenance. To extend the service life of the bearing, it is necessary to select high-precision matching parts during installation to avoid assembly deflection and excessive preload. In daily use, regular lubrication replacement and dust-proof protection can effectively prevent internal wear and corrosion, ensuring the long-term stable operation of the bearing.

In the context of the continuous upgrading of modern precision machinery manufacturing, the demand for bearings is gradually developing towards miniaturization, lightweight, high precision and multi-functional integration. The KF070XP0 bearing precisely conforms to this industry development trend. It integrates space saving, light weight, high precision, multi-load bearing and low friction performance, solving many pain points in the application of traditional bearings in precision equipment. Compared with similar thin-section bearings, it has more balanced comprehensive performance, higher cost performance and stronger market adaptability, and has become a key basic component supporting the upgrading of high-end precision machinery equipment.

In conclusion, the KF070XP0 four-point contact thin-section bearing is a mature and high-quality precision bearing product with excellent structural design, stable performance and wide application range. Its unique four-point contact structure and ultra-thin section design realize the perfect combination of space optimization, lightweight design and high-precision load bearing. With the continuous development of intelligent manufacturing and high-precision equipment manufacturing industry, the KF070XP0 bearing will play a more important role in more industrial fields, providing reliable basic support for the efficient, precise and stable operation of modern precision mechanical equipment.
