An In-depth Analysis of CSCC0100 Thin Section Bearing

In the precision machinery manufacturing industry, thin section bearings are indispensable core components for realizing compact, lightweight, and high-precision mechanical operation. Among various constant-section bearing products, the CSCC0100 thin-section deep groove ball bearing stands out for its standardized size, stable structural performance, and wide adaptability. It has become a key supporting part in high-end equipment such as industrial robots, optical instruments, aerospace devices, and precision automation machinery. Different from traditional ordinary bearings with variable cross-section sizes, the CSCC0100 bearing adheres to the constant-section design concept, which perfectly balances structural compactness, load-bearing capacity, and operational stability, making it irreplaceable in limited-space mechanical systems.

The CSCC0100 belongs to the classic CS series constant-section thin wall bearings, and its model coding contains clear structural and size definition information. The CS prefix represents the constant-section thin wall bearing series, the middle C indicates radial contact structure, which is mainly suitable for bearing radial loads, and the subsequent C stands for the standard cross-section height specification of the product. The number 100 corresponds to the 10-inch bore diameter, which is converted to 254mm in metric size, matching the unified industrial standard caliber. Its overall dimensions adopt an optimized thin-wall design, with an outer diameter of 273.05mm and a section width of 9.525mm. This ultra-thin and uniform cross-section structure is the core feature that distinguishes it from conventional bearings, effectively solving the space occupation problem of large-diameter bearings in precision equipment.

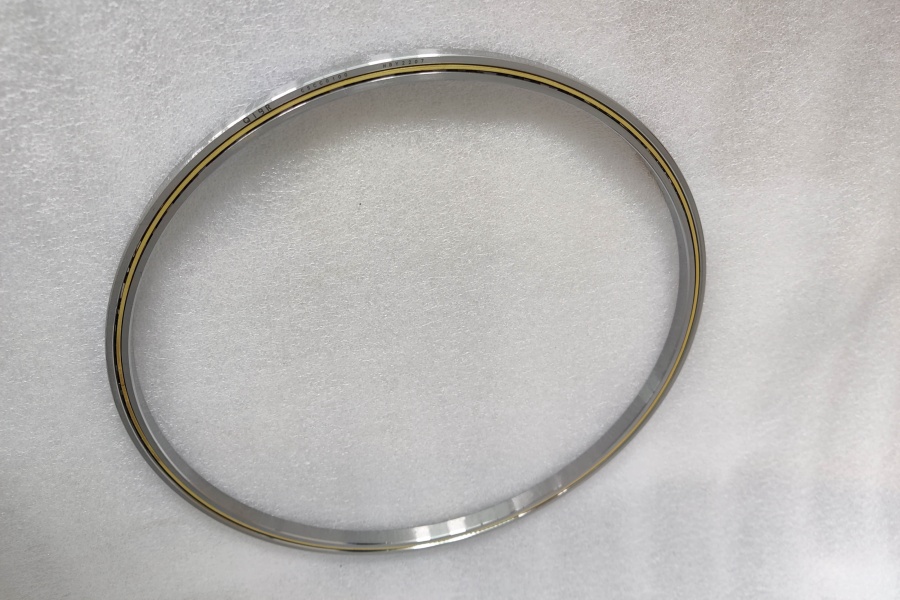

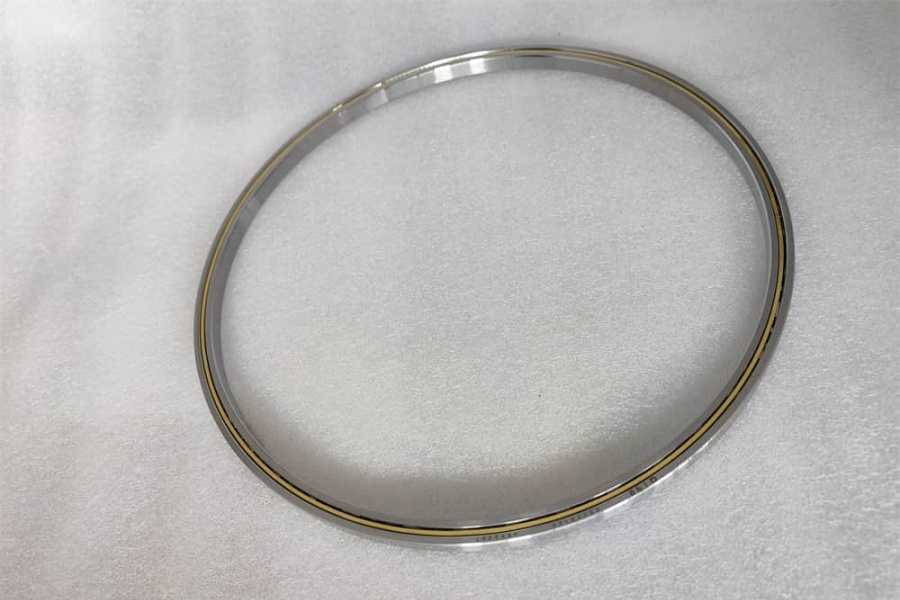

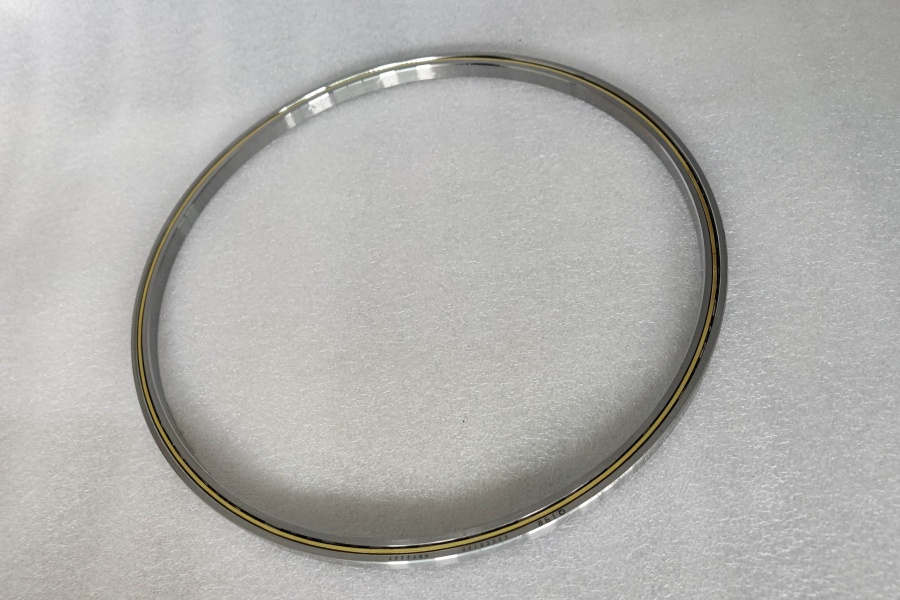

Structurally, the CSCC0100 bearing adopts a standard deep groove ball structure, equipped with a pressed brass cage and high-precision steel balls. The brass cage has excellent rigidity and wear resistance, which can effectively isolate the steel balls, ensure uniform operation of each rolling body, avoid friction and collision between parts, and reduce operational noise and vibration. The bearing is designed with an open type without sealing structure, which facilitates flexible lubrication replacement and daily maintenance in industrial applications. It adopts normal internal radial clearance (Cn level) and ABEC-1 precision tolerance standard, ensuring high dimensional accuracy and rotational stability during operation. In terms of material and temperature resistance, the bearing supports a working temperature range from -30°C to 120°C, adapting to most conventional industrial working environments, and no additional heat stabilization treatment is required for conventional use scenarios.

Compared with traditional bearings of the same bore diameter, the CSCC0100 thin section bearing has prominent performance advantages. First of all, its ultra-thin constant-section design greatly reduces the overall weight and radial space occupation of the bearing. For mechanical equipment with strict space and weight limits, this feature can effectively optimize the equipment structure, reduce the overall volume of the device, and realize lightweight equipment design. Secondly, the constant cross-section structure makes the bearing’s stress distribution more uniform during operation, avoiding the problem of local stress concentration caused by uneven section of traditional bearings, thus improving the overall structural stability and service life. In addition, although it is thin-walled, the radial contact structure enables it to bear stable radial loads, and it also has a certain auxiliary bearing capacity for light axial loads, with balanced comprehensive load performance.

The excellent comprehensive performance of CSCC0100 bearings enables them to be widely used in multiple high-precision industrial fields. In industrial robot manufacturing, they are commonly used in robot joint rotating parts and precision rotating platforms. The lightweight and high-precision characteristics ensure the flexible and accurate movement of robot joints, reduce the inertia of mechanical movement, and improve the positioning accuracy of automated operations. In optical equipment and precision instrument industries, the bearing’s low vibration, low noise and high rotation stability can avoid interference with precision optical detection and instrument measurement, ensuring the accuracy of experimental data and detection results.

In addition, CSCC0100 bearings are also widely applied in aerospace auxiliary equipment, textile and printing machinery, and intelligent handling equipment. In aerospace equipment, its lightweight advantage helps reduce the overall load of aircraft and spacecraft, while its wide temperature adaptability ensures stable operation in complex atmospheric temperature environments. In textile and printing machinery, the bearing’s durable wear resistance and stable rotating performance can adapt to long-term continuous industrial operation, reducing equipment failure rates and maintenance costs. Its standardized inch size design also enables strong compatibility, which can be perfectly matched with most imported and domestic precision mechanical equipment, realizing convenient replacement and assembly.

To maintain the long-term stable performance of CSCC0100 bearings, standardized daily maintenance and operation specifications are essential. Since it is an open-type bearing, it is necessary to regularly inject professional high-precision bearing lubricating grease to reduce friction between rolling bodies and raceways and prevent dry friction and wear. In the working environment, it is necessary to avoid dust, debris and corrosive substances from entering the bearing interior, so as not to affect the rotation accuracy and cause premature wear. During installation, axial and radial impact forces should be avoided to prevent deformation of the thin-wall structure and damage to internal precision parts. Meanwhile, it is necessary to control the operating temperature within the standard range and avoid long-term overload operation, so as to give full play to its optimal service performance.

In conclusion, the CSCC0100 thin section constant-section bearing is a mature and high-performance precision bearing product. Its unique thin-wall constant-section structure, high dimensional accuracy, stable load-bearing performance and wide environmental adaptability make it an indispensable basic component in modern precision machinery manufacturing. With the continuous upgrading of intelligent equipment, lightweight and high-precision mechanical design has become the mainstream development trend of the industry. The CSCC0100 bearing will continue to exert its structural and performance advantages, providing reliable technical support for the iterative upgrading of industrial robots, optical precision instruments, aerospace equipment and other fields, and occupying an important position in the high-end bearing market.
