232.20.0900.013 Typ 21/1050.2

Inner diameter:
841.6 mm
Outer diameter:
1048 mm
Width:
56 mm
Mass:
65.8 kg

We will provide you with the most suitable solution.

232.20.0900.013 Typ 21/1050.2

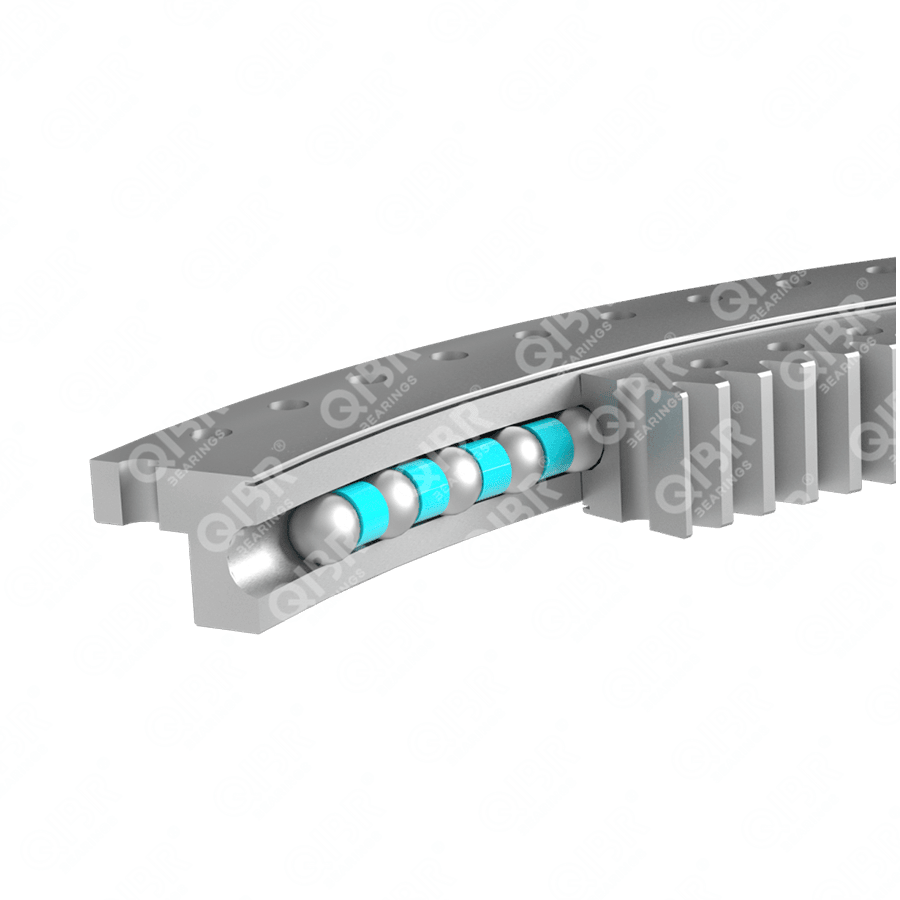

Image may differ from product. See technical specification for details.

Specifications

Seris - 232.20.0900.013 Typ 21/1050.2

Rolling element type : Ball
Measurement system : Metric
Ball track diameter (DL) : 944 mm
Weight : 65.8 kg
Outer diameter (Da) : 1048 mm
Inner diameter (Di) : 841.6 mm
Overall height (H) : 56 mm
External bolt circle diameter (La) : 1020 mm
Internal bolt circle diameter (Li) : 905 mm
Number of bolt holes (na) : 16
External hole diameter (B/M) : 18 mm
Number of bolt holes (ni) : 22
Internal hole diameter (B/M) : M 12
Thread depth (t) : 20 mm
Number of grease nipples : 4
Diameter (O) : 942.5 mm
Diameter (U) : 945.5 mm
Diameter (A) : 983 mm
Diameter (C) : Ask Us
Distance at bottom outer ring/inner ring (Hu) : 10.5 mm
Distance at top outer ring/inner ring (Ho) : Ask Us
Gear P.C.D. : 856 mm
Module : 8 mm
Number of teeth (z) : 107
Tooth width (b) : 45.5 mm
Addendum reduction (k.m) : -0.8 mm
Permissible tangential forces normal : 20.49 KN
Permissible tangential forces MAX : 40.98 KN
Gear type : No Gear
Temperature : -20℃ to +120℃
Seal type : Closed Type
232.20.0900.013 Typ 21/1050.2

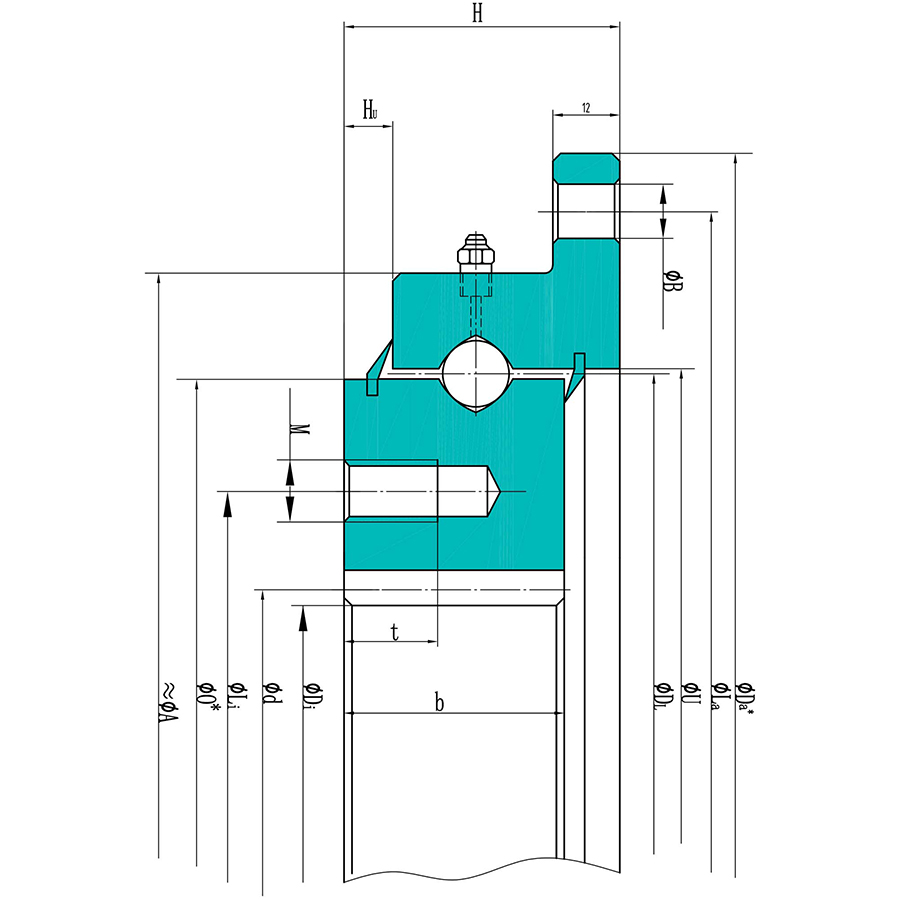

Download 232.20.0900.013 Typ 21/1050.2 Drawing

Description

Ball track diameter (DL), Weight, Outer diameter (Da), Inner diameter (Di), Overall height (H), External bolt circle diameter (La), Internal bolt circle diameter (Li), Number of bolt holes (na), External hole diameter (B/M), Number of bolt holes (ni), Internal hole diameter (B/M), Thread depth (t), Number of grease nipples , Diameter (O), Diameter (U), Diameter (A), Diameter (C), Distance at bottom outer ring/inner ring (Hu), Distance at top outer ring/inner ring (Ho), Gear P.C.D., Module , Number of teeth (z), Tooth width (b), Addendum reduction (k.m), Permissible tangential forces normal, Permissible tangential forces MAX, Gear type,

QIBR - 232.20.0900.013 Typ 21/1050.2 Slewing Bearing Advantages and Applications

232.20.0900.013 Typ 21/1050.2 Slewing Bearing, high speed, good stability, strong vibration resistance, {$inner-diameter-di$} is {$inner-diameter-di_value$}，{$outer-diameter-da$} is {$outer-diameter-da_value$}，{$overall-height-h$} is {$overall-height-h_value$}，{$weight$} is {$weight_value$}, suitable for astronomical observation instruments, cranes, hoists, radar systems and steelmaking furnaces, etc., is the most widely used bearing in working conditions requiring high speed.

Ball track diameter (DL), Weight, Outer diameter (Da), Inner diameter (Di), Overall height (H), External bolt circle diameter (La), Internal bolt circle diameter (Li), Number of bolt holes (na), External hole diameter (B/M), Number of bolt holes (ni), Internal hole diameter (B/M), Thread depth (t), Number of grease nipples , Diameter (O), Diameter (U), Diameter (A), Diameter (C), Distance at bottom outer ring/inner ring (Hu), Distance at top outer ring/inner ring (Ho), Gear P.C.D., Module , Number of teeth (z), Tooth width (b), Addendum reduction (k.m), Permissible tangential forces normal, Permissible tangential forces MAX, Gear type,

QIBR - 232.20.0900.013 Typ 21/1050.2 Slewing Bearing Characteristics

232.20.0900.013 Typ 21/1050.2 Slewing Bearing, long life and strong durability. 232.20.0900.013 Typ 21/1050.2 Slewing Bearing, can bear radial load, axial load and overturning moment at the same time, suitable for mechanical equipment requiring high stability.

232.20.0900.013 Typ 21/1050.2 Slewing Bearing Features and Advantages

Compact design: Compact structure, it can be installed in space-constrained environments, and has a wider range of applications.

High load capacity: It can withstand axial, radial and overturning moments at the same time, suitable for heavy-duty applications.

Superior precision: Maintain high precision during use and reduce errors in equipment operation.

High temperature and wear resistance: Made of high-temperature bearing steel, with good wear resistance and strength.

Application: Widely used in lifting machinery, engineering machinery, transportation machinery, mining machinery, metallurgical machinery, medical equipment, ships, warships, radar, wind power generation and other fields.

QIBR - 232.20.0900.013 Typ 21/1050.2 Slewing Bearing Optimization

Grease replacement: Replace grease with other greases such as SFK, Mobil, Krupp, etc. to optimize the working performance and use conditions of the bearing.

Coating optimization: Provide other coatings such as zinc plating or nickel plating to enhance corrosion resistance and wear resistance and extend its service life in harsh environments.

Process optimization: Optimize the bearing production process, increase the bearing operating temperature range, and improve the bearing accuracy and stability.

More customization: QIBR can optimize the bearing structure design according to customers’ drawings or equipment requirements to meet equipment needs.

QIBR - 232.20.0900.013 Typ 21/1050.2 Slewing support bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with the highest accuracy up to 0.01mm.

Rotation accuracy: Use a dial indicator to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.01mm.

Hardness measurement: Use a Leeb hardness tester to measure the bearing surface hardness, with a measurement accuracy of ±6HLD.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a roundness meter to measure the bearing geometry and relative position.

Noise monitoring: Use a vibration meter to monitor the vibration during operation and obtain noise data.

Features & Benefits

The slewing bearing consists of five essential components: the inner ring, which rotates; the outer ring, which remains stationary; rolling elements that facilitate movement; spacers for even distribution; and seals that protect against contaminants and retain lubrication.
232.20.0900.013 Typ 21/1050.2
The outer ring has excellent mechanical performance, with high strength and toughness. After quenching and tempering (Q+T), it exhibits fatigue resistance, impact resistance, and excellent low-temperature impact toughness.
The inner ring has excellent mechanical performance, with high strength and toughness. After quenching and tempering (Q+T), it exhibits fatigue resistance, impact resistance, and excellent low-temperature impact toughness.
Rollers and balls are both types of rolling elements, which are the most crucial components of rotary support bearings and the most commonly used rolling elements in the bearing industry.
It is located between the outer raceway, inner raceway, and rollers/balls of the bearing. It is a isolator block that serves as a cage.
Its role serves two purposes: Firstly, to prevent the loss of lubricating grease or oil inside the bearing, ensuring proper lubrication. Secondly, to shield the bearing from external dust or harmful gases, thus preventing damage.
To ensure the smooth operation of the bearing, it is necessary to inject lubricating grease or oil between the inner and outer rings of the bearing. The function of lubricating grease or oil is to reduce friction coefficient and wear, minimize bearing heat and friction losses, and enhance bearing lifespan.
